Comprehensive Rock Drilling Solutions: Our range of bench and production drilling tools includes premium rods, shank adapters, couplings, and bits. We provide support for nine primary thread types: R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68. These professional-grade components are fully compatible with button bits, cross bits, and reaming products to ensure maximum efficiency in diverse rock conditions.
Our comprehensive selection covers everything from 1” rope thread equipment up to T60 thread systems. These drill rods, tubes, and button bits are engineered to improve productivity considerably, making them a preferred choice for demanding mining and construction projects worldwide.
| Button Bit Type | Gauge Carbide | Front Carbide | Dimensions D | Flushing Hole | ||||
|---|---|---|---|---|---|---|---|---|
| No. | mm | No. | mm | mm | inch | Front | Side | |
| Standard | 5 | 9 | 2 | 9 | 41 | 1 5/8" | 1 | 1 |
| Flat Face | 6 | 11 | 2 | 10 | 51 | 2" | 1 | 1 |
| Retrac | 6 | 10 | 3 | 8 | 45 | 1 3/4" | 2 | 0 |
| Diameter (D) | Length (mm) | Length (ft) | Thread Left | Thread Right |
|---|---|---|---|---|
| RD 32 | 610 | 2' | R32 | R32 |
| RD 32 | 1830 | 6' | R32 | R32 |
| RD 32 | 3050 | 10' | R32 | R32 |
| RD 32 (MF) | 3660 | 12' | R32F | R32 |
| Rod Diameter | Length (mm) | Length (ft) | Thread Type |
|---|---|---|---|
| 48mm | 1220 | 4' | T35 - 1-3/8" Trapezoidal |
| 48mm | 3050 | 10' | T35 - 1-3/8" Trapezoidal |

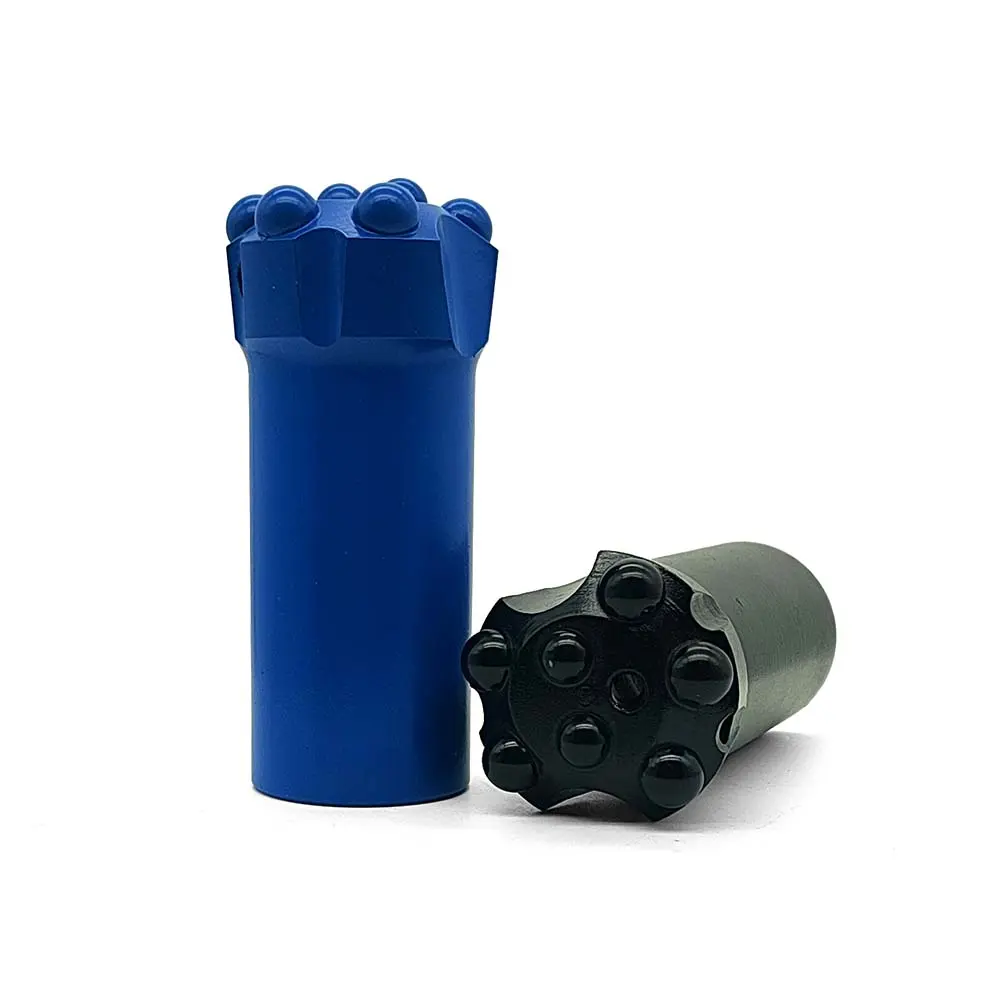

| Bit Face | Carbide No. | Diameter (mm) | Diameter (inch) | Flush Holes |
|---|---|---|---|---|
| Flat Face | 6 / 3 | 57 | 2 1/4" | 3 Front / 1 Side |
| Drop Center | 8 / 4 | 76 | 3" | 3 Front / 1 Side |
Designed for heavy bench drilling, the T45 and T51 series offer superior resistance to bending and breakage. The carburized rods maintain high thread strength throughout their service life.
| Thread | Max Bit Diameter | Common Lengths | Application |
|---|---|---|---|
| ST58 | 102mm (4") | 12' - 20' | High Precision Production |
| GT60 | 152mm (6") | 12' - 20' | Deep Hole Bench Drilling |
| ST68 | 152mm (6") | 5' - 6' | Extreme Duty Operations |
We offer nine primary thread types: R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68, suitable for various bench and production drilling needs.
Yes, our tools are versatile and can be equipped with button bits, cross bits, and reaming products depending on the geological requirements.
By using high-quality carburized steel and precision-engineered threads, our tools reduce downtime, minimize breakage, and provide faster penetration rates.
MF-rods (Male/Female) feature integrated couplings, which allow for quicker connections and straighter holes compared to standard rods that require separate coupling sleeves.
Yes, we provide 1” rope thread equipment up to large-scale T60 threads, ensuring compatibility with everything from small mobile units to large industrial bench rigs.
R32 rods are available in a wide variety of lengths ranging from 610mm (2ft) up to 5490mm (18ft) to suit different drilling depths and machine setups.
