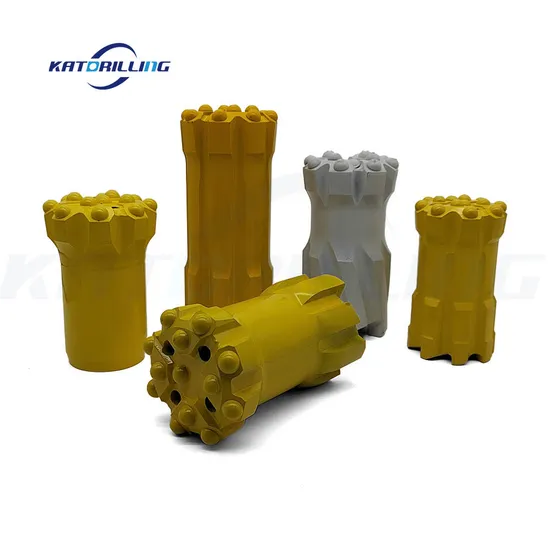

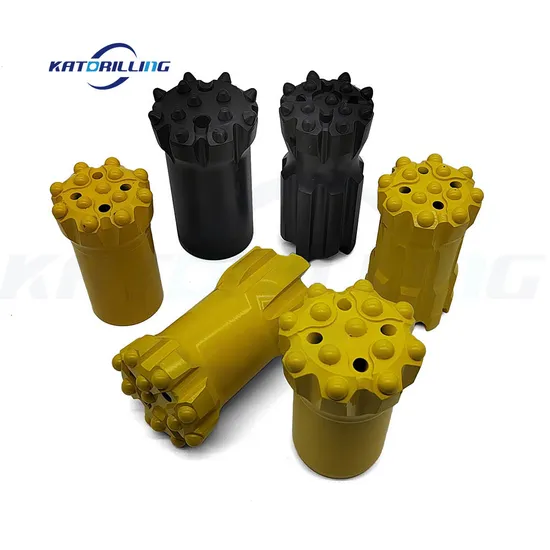

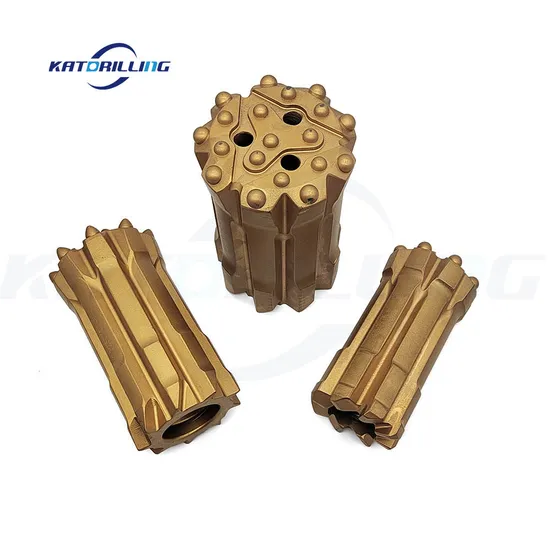

Bench and production drilling tools include rods, shank adapters, couplings and bits. We provide a comprehensive range covering 9 major threads: R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68. These tools are ideally compatible with button bits, cross bits, and reaming products.
Our range spans from 1" rope thread equipment up to T60 thread equipment. These high-performance drill rods, tubes, and button bits are engineered to significantly improve drilling productivity in various geological conditions.
| Type | Gauge Carbide | Front Carbide | Dimensions D | Flushing Hole | ||||
|---|---|---|---|---|---|---|---|---|
| No. | mm | No. | mm | mm | inch | Front | Side | |
| Flat Face | 9 | 11 | 8 | 10 | 89 | 3 1/2" | 3 | 1 |
| Flat Face | 9 | 12.7 | 8 | 11 | 93 | 3 11/16" | 3 | 1 |
| Drop Center | 8 | 14 | 4/3 | 12.7/11 | 102 | 4" | 4 | 0 |
| Drop Center | 8 | 16 | 4/3 | 16/12.7 | 127 | 5" | 4 | 0 |
| Type | Gauge Carbide | Front Carbide | Dimensions D | Flushing Hole | ||||
|---|---|---|---|---|---|---|---|---|
| No. | mm | No. | mm | mm | inch | Front | Side | |
| GT60 Bit | 8 | 12.7 | 6 | 12.7 | 93 | 3 11/16" | 2 | 0 |
| GT60 Bit | 8 | 14 | 6 | 12.7 | 102 | 4" | 4 | 2 |
| GT60 Bit | 10 | 16 | 8 | 16 | 140 | 5 1/2" | 5 | 0 |
| GT60 Bit | 10 | 16 | 8 | 16 | 152 | 6" | 5 | 0 |
