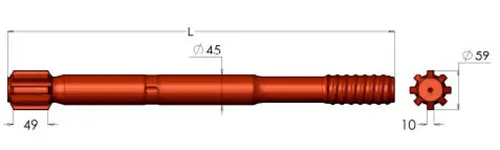

Shank adapter for SANDVIK HL 500-45, HL510-45, HL510S, HL550S, HL560S Drill rig
| THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
Product No. |
| mm |
In. |
mm |
In. |
Ref 1 |
Ref 2 |
| R32 |
460 |
17.72 |
45 |
1.75 |
- |
- |
| T35 |
500 |
19.69 |
45 |
1.75 |
7307-7566-01 |
- |
| R38 |
500 |
19.69 |
45 |
1.75 |
7804-7554-01 |
90516171 |
| T38 |
500 |
19.69 |
45 |
1.75 |
7304-7554-01 |
90516188 |
| T35 |
550 |
21.65 |
45 |
1.75 |
7307-7557-01 |
- |
| R32 |
550 |
21.65 |
45 |
1.75 |
7803-7557-01 |
- |
| T38 |
550 |
21.65 |
45 |
1.75 |
7304-7557-01 |
90516187 |
| T45 |
550 |
21.65 |
45 |
1.75 |
7305-7557-01 |
90516207 |
💡 Frequently Asked Questions
Which drill rig models is this shank adapter compatible with?
This shank adapter is specifically designed for Sandvik HL 500-45, HL510-45, HL510S, HL550S, and HL560S drill rigs.
What thread options are available for these adapters?
We offer various thread types including R32, T35, R38, T38, and T45 to suit different drilling requirements.
What are the standard lengths for the HL series shank adapters?
Common lengths include 460mm, 500mm, and 550mm, providing flexibility for different setup depths.
What is the front end diameter of these adapters?
The standard front end diameter for this specific series is 45mm (1.75 inches).
How can I identify the correct product number?
You can match your required thread and length against the product table, referencing numbers like 7304-7554-01 or 90516188.
Are these adapters designed for heavy-duty drilling?
Yes, they are engineered to withstand high-impact energy and provide maximum durability in demanding rock conditions.
