Premium Shank Adapter Compatibility
- ✓ FURUKAWA HD609-STD Drill Rig
- ✓ JUN JIN JET 7
- ✓ SOOSAN SP3G / TD 45

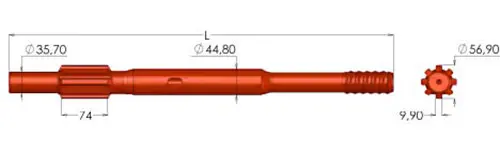

Product Visuals
Technical Specifications
| FURUKAWA - HD 609 (STD) Series |
| Thread |
Overall Length (L) |
Front End Diameter |
Product No. |
| Type |
mm |
In. |
mm |
In. |
Ref Code |
| R38 |
620 |
24.41 |
45 |
1.75 |
- |
| T38 |
620 |
24.41 |
45 |
1.75 |
- |
| T45 |
620 |
24.41 |
45 |
1.75 |
90510276 |
| Extended Length Series |
| Thread |
Overall Length (L) |
Front End Diameter |
Product No. |
| Type |
mm |
In. |
mm |
In. |
Ref Code |
| T38 |
690 |
27.17 |
45 |
1.75 |
90516197 |
| T45 |
690 |
27.17 |
45 |
1.75 |
- |
Frequently Asked Questions
Which drill rig models is this shank adapter compatible with?
This shank adapter is specifically designed for use with FURUKAWA HD609-STD drill rigs, JUN JIN JET 7, and SOOSAN SP3G or TD 45 models.
What thread types are available for the 620mm shank adapter?
The 620mm (24.41 inches) length model is available in R38, T38, and T45 thread configurations.
Is there a longer version of the shank adapter for HD609?
Yes, we provide an extended version with an overall length of 690mm (27.17 inches), available in T38 and T45 threads.
What is the standard front end diameter for these adapters?
Both the standard and extended models feature a front end diameter of 45mm (1.75 inches).
How can I identify the specific part numbers for ordering?
The T45 thread (620mm) corresponds to product number 90510276, and the T38 thread (690mm) corresponds to product number 90516197.
Are these adapters suitable for heavy-duty drilling?
Yes, they are engineered to meet the specifications of high-performance hydraulic drifters like the HD609 series for reliable energy transmission.
