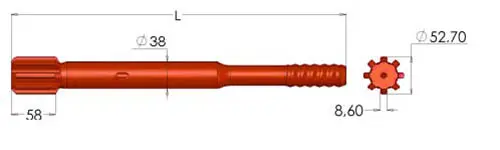

Shank adapter for MONTABERT HC40 HC50 drill rig
| MONTABERT - HC 40, 50 (MALE) |
| THREAD |
OVERALL LENGTH (L) |
FRONT END DIA. |
Product no. |
| mm |
In. |
mm |
In. |
| R32 |
372 |
14.65 |
38 |
1.5 |
90515895 |
| R38 |
372 |
14.65 |
38 |
1.5 |
90515966 |
| T35 |
372 |
14.65 |
38 |
- |
90003694 |
| T38 |
372 |
14.65 |
38 |
1.5 |
90515989 |
| R32 |
447 |
17.6 |
38 |
1.5 |
7803-4725-01 |
| R38 |
447 |
17.6 |
38 |
1.5 |
7804-4725-01 |
| T38 |
447 |
17.6 |
38 |
1.5 |
7304-4725-01 |
Frequently Asked Questions
What specific drill rigs is this shank adapter compatible with?
This shank adapter is specifically designed for MONTABERT HC40 and HC50 drill rigs, ensuring a perfect fit and optimal energy transfer.
What thread types are available for the HC40/HC50 adapters?
We provide multiple thread options including R32, R38, T35, and T38 to meet different drilling requirements and rod configurations.
What is the difference between the two lengths listed in the table?
We offer two standard overall lengths: 372mm (14.65 inches) and 447mm (17.6 inches). The choice depends on your specific drilling setup and equipment clearance.
Are these adapters male or female type?
The adapters listed for the MONTABERT HC 40 and 50 series are Male type shank adapters.
How can I identify the correct product number for my order?
You can match your required thread type and overall length against our product number column (e.g., 90515895 for R32/372mm) to ensure you receive the exact part needed.
What is the front end diameter for these adapters?
Most models feature a standard front end diameter of 38mm (1.5 inches), which is engineered for high durability during heavy-duty drilling operations.
