China Shank adapter for FURUKAWA PD200,HD200,MD120 etc. Factory, Pricelist

Shank adapter for FURUKAWA PD200,HD200,MD120 ;GARDNER DENVER PR 123,BOART SECAN S 36 IR;INGERSOLL-RAND URD 475 A, 550, VL 120, VL 140, F16;SANDVIK TAM 750;TOKYO RIUKI HD 200, H 120 / TOYO PR 220

Send Inquiry

Product Description

🛠️ Professional Shank Adapters Compatibility

High-performance shank adapters designed for a wide range of top-tier rock drilling equipment, ensuring maximum energy transmission and durability.

FURUKAWA: PD200, HD200, MD120
GARDNER DENVER: PR 123
BOART SECAN: S 36 IR
INGERSOLL-RAND: URD 475 A, 550, VL 120, VL 140, F16
SANDVIK: TAM 750
TOKYO RIUKI / TOYO: HD 200, H 120 / PR 220

📸 Product Gallery

📊 Technical Specifications

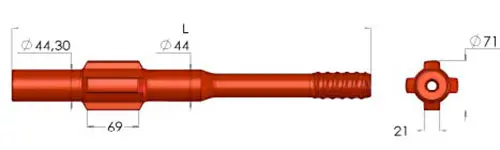

THREAD	OVERALL LENGTH (L)		FRONT END DIA.		Product No.
THREAD	mm	In.	mm	In.	Product No.
R32	380	14.96	44	1.73	-
R38	380	14.96	44	1.73	-
T38	380	14.96	44	1.73	7304-7543-60
T45	380	14.96	44	1.73	-
R32	446	17.56	44	1.73	-
R38	446	17.56	44	1.73	-
T38	446	17.56	44	1.73	7304-7500-60
T45	446	17.56	44	1.73	-
T38	484	19.06	44	1.73	-
T45	484	19.06	44	1.73	90516025

Frequently Asked Questions

What models are these shank adapters compatible with?

These shank adapters are specifically designed for FURUKAWA (PD200, HD200, MD120), GARDNER DENVER PR 123, INGERSOLL-RAND (URD 475 A, 550, VL 120, VL 140), and other major brands like SANDVIK and TOYO.

What thread types are available for these adapters?

We offer a variety of industry-standard threads including R32, R38, T38, and T45 to match different drilling requirements.

How do I determine the correct length for my equipment?

The length is determined by the specific drifter model. Our common lengths include 380mm (14.96"), 446mm (17.56"), and 484mm (19.06"). Always refer to your machine's manual or current part number.

Are these shank adapters suitable for heavy-duty drilling?

Yes, they are manufactured using premium alloy steel and advanced heat treatment to withstand the high impact and rotational stresses of heavy-duty rock drilling.

What is the significance of the "Front End Dia."?

The Front End Diameter ensures a proper fit with the coupling or drill rod. Most of these models feature a standard 44mm (1.73") front end diameter for stability.

Can I find specific product numbers in the catalog?

Yes, specific product numbers such as 7304-7543-60 or 90516025 are listed in our technical table to ensure you order the exact match for your hardware.
