China S120 Roadheader pick Manufacturers, Pricelist

Our products include all kinds of round cutter bit and flat cutter bits for excavate coal Machine. Such as U76, U82, U84, U85, U92, U94, U95, U118 S100,S135,S150,S160,S200 , B47K17H, B47K19H, B47K22H, B43K, B43H, BHR73 etc and coal bolting bit and coal bolting Rod.

Send Inquiry

Product Description

⚙️ Technical Advantages

1. Alloy steel body is made by material ASTM4140 (42CrMoA), featuring heat treatment with HRC38-42 hardness. It possesses high toughness and excellent wearable characteristics.
2. Tungsten carbide tip is crafted from low press sintered carbide. The specific grade is selected based on target projects to ensure optimal performance during heavy-duty operations.
3. These products are engineered to adapt to machinery with high-performance features, including a high feed rate, extended service life, and minimized tool changing time.

⛏️ Product Scope

Our product line includes a comprehensive range of round cutter bits and flat cutter bits for excavating coal machines. Suitable for surface mining, underground mining, and tunneling, we provide models such as U76, U82, U84, U85, U92, U94, U95, U118, S100, S135, S150, S160, S200, B47K17H, B47K19H, B47K22H, B43K, B43H, BHR73, as well as coal bolting bits and rods.

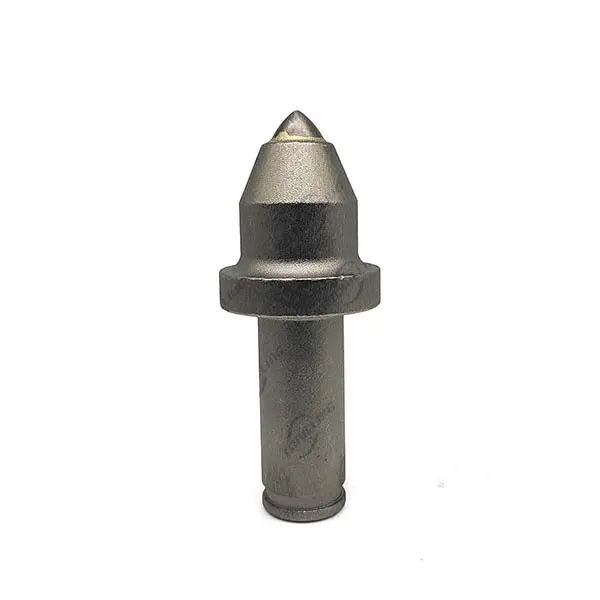

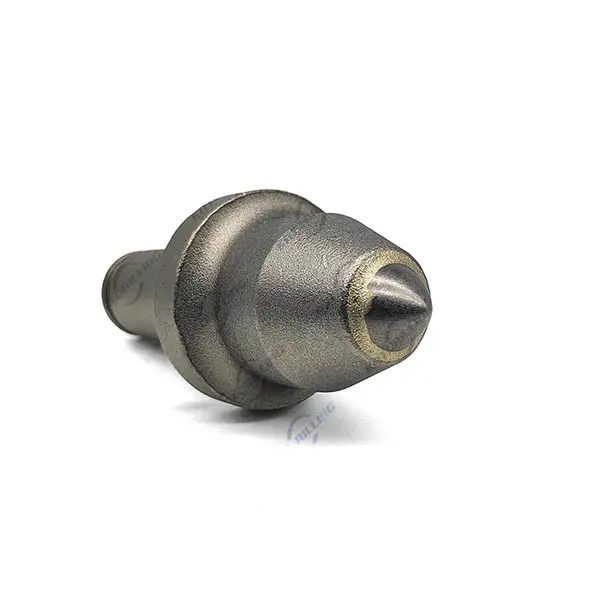

🔍 S120 Roadheader Pick

Product Name	Coal Cutting Tools
Description	Rock drilling tools, construction drilling tools, mining tools, road milling tools, shield cutters and related high-performance products.
Material	Carbide Steel / ASTM4140
MOQ	100 PCS
Diameter Range	19 - 70mm
Usage	Mining and Professional Drilling
Available Colors	Customized according to customer request

📊 Technical Specifications

Category	Model	Height (mm)	Diameter (Φ mm)	Alloy Size (Φ mm)	Sleeve Dia (Φ mm)
Shearer Pick	U47	157	64	19 / 14	30
	U82	152	50	22 / 19	30
	U84	139 / 142	55 / 50	16 / 19	30
	U85	161 / 195	50 / 55	16	30 / 35
	U94	183 / 178 / 182	55 / 54	22 / 19	35
	U95	182.5 / 180.5 / 128.5	54	23	35
	U170	222	62 / 82	25 / 22 / 23	35
Roadheader Pick	S100	141 / 143	53 / 44.5	22 / 13 / 12	33.7 / 33.5
	S120	153 / 139	70 / 55 / 50	22 / 17	38 / 30
	S135	155 / 157 / 166.5	64 / 62 / 65	25 / 23	38 / 35
	S150	166.5 / 153	65 / 70	23 / 25 / 22	38
	S160	149 / 150	61 / 65	27 / 22 / 17	30
	S260	156 / 164.5 / 165	80 / 65	34 / 27 / 25	37.5 / 38
Rotary Excavator Pick	C31 - C36	118 - 142	33 / 47	12 - 19	25
	C50 - C60	130.5	50 - 60	19 - 22	30
	C50/30-25H	130.5 / 150	55	25	30

Frequently Asked Questions

What materials are used in the manufacturing of the cutter tool bodies?

The tool bodies are manufactured using high-quality ASTM4140 (42CrMoA) alloy steel, which undergoes heat treatment to reach a hardness of HRC38-42 for superior durability.

Are the tungsten carbide tips suitable for different rock conditions?

Yes, we use low press sintered tungsten carbide. We select the appropriate carbide grade based on the specific requirements of your project to ensure maximum performance.

What types of mining operations can these tools be used for?

Our coal mining tools are versatile and designed for surface mining, underground mining, tunneling, and roadheading applications.

What is the Minimum Order Quantity (MOQ)?

The standard MOQ for our coal cutting tools is 100 pieces per order.

Can I choose a specific color for my tools?

Yes, we provide customization options for product colors according to the customer's specific requests.

How do these picks improve machine performance?

They support a high feed rate and offer a long service life, which significantly reduces the frequency and time required for tool changes.
