KAT DRILLING
1 / 5
Bench and production drilling tools include rods, shank adapters, couplings and bits. We have mainly 7 threads: R3212, R32, HL38, T38, T45, T51, T60, ST58 and ST68. They can be used with button bits, cross bits and reaming products.

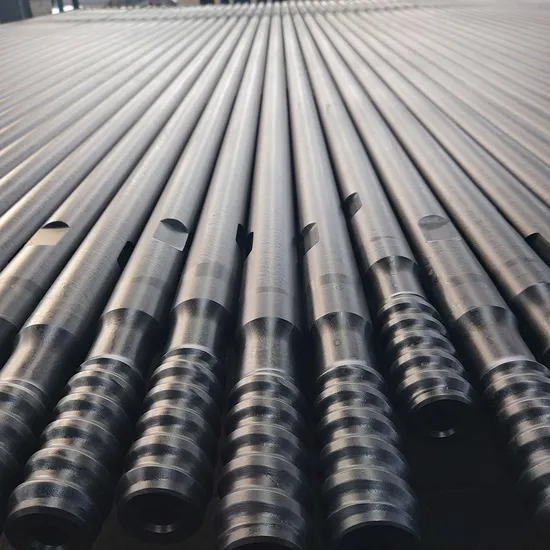

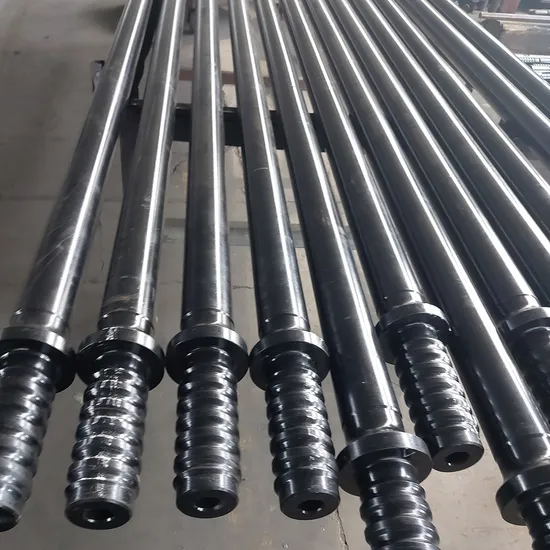

| R32 - R32 - Rd 32 (1-1/4" ROPE THREAD 32mm) Carburized Extension Rods | |||||
|---|---|---|---|---|---|
| Type | D (mm) | Length (mm) | Length (FT) | Thread Left | Thread Right |
| RD 32 | 32 | 610 | 2' | R32 | R32 |
| RD 32 | 32 | 915 | 3' | R32 | R32 |
| RD 32 | 32 | 1220 | 4' | R32 | R32 |
| RD 32 | 32 | 1830 | 6' | R32 | R32 |
| RD 32 | 32 | 3050 | 10' | R32 | R32 |
| RD 32 | 32 | 3660 | 12' | R32 | R32 |

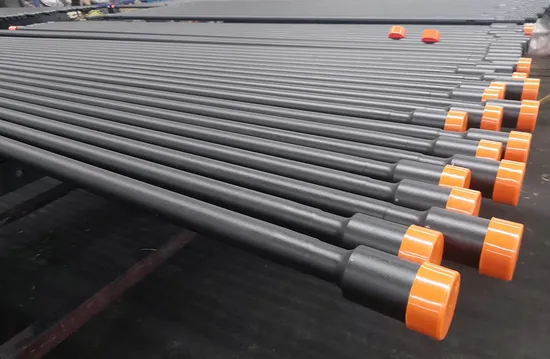

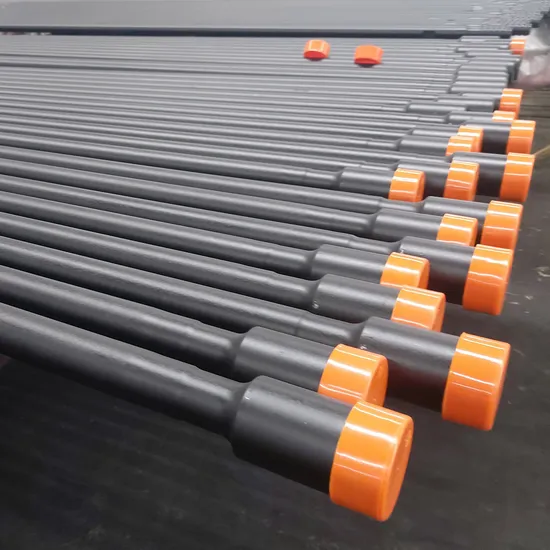

| MF-Rod R32 - R32 - Rd 32 (1-1/4" ROPE THREAD 32mm) Carburized | |||||
|---|---|---|---|---|---|
| Type | D (mm) | Length (mm) | Length (FT) | Thread Male | Thread Female |
| RD 32 | 32 | 915 | 3' | R32 | R32F |
| RD 32 | 32 | 1220 | 4' | R32 | R32F |
| RD 32 | 32 | 1525 | 5' | R32 | R32F |
| RD 32 | 32 | 1830 | 6' | R32 | R32F |
| RD 32 | 32 | 3050 | 10' | R32 | R32F |
| RD 32 | 32 | 4270 | 14' | R32 | R32F |
