China QL60 High Air Pressure DTH Hammer Manufacturers, Pricelist

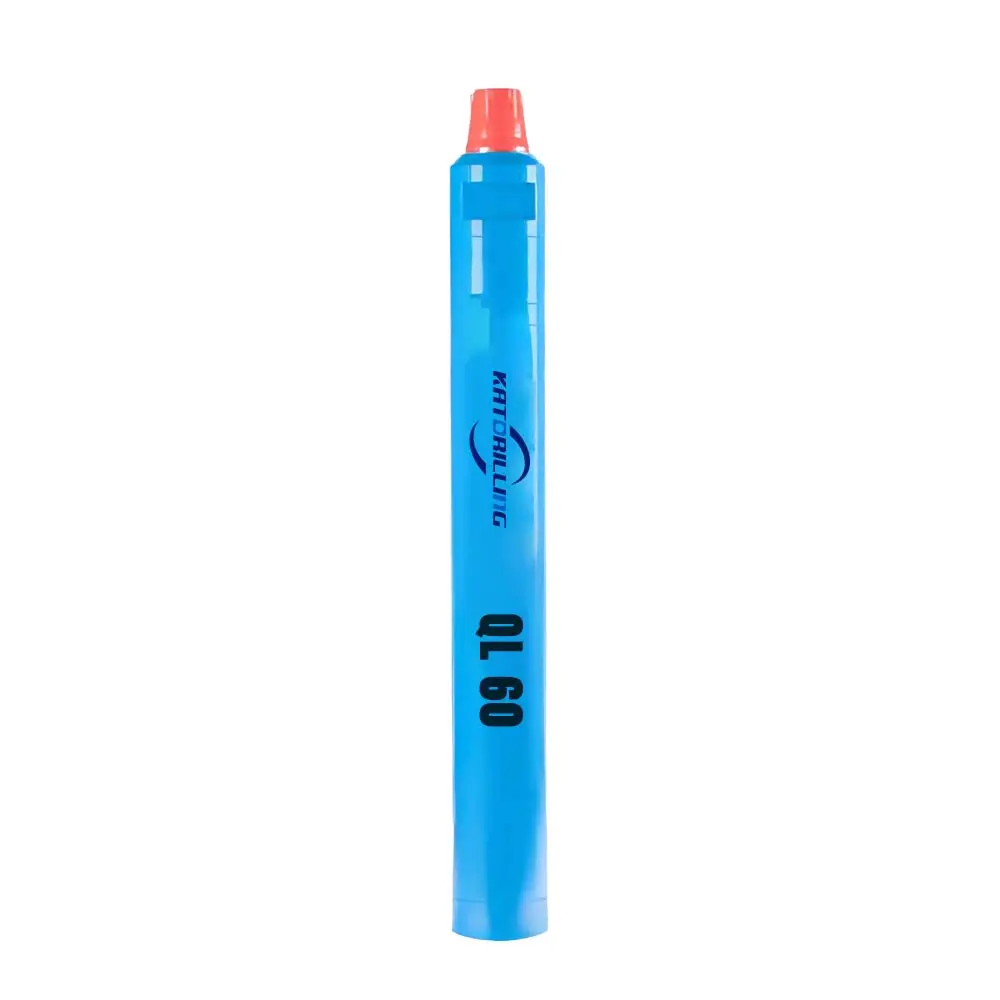

QL60 High Air Pressure DTH Hammer

BR1/BR2/BR3

DHD3.5/DHD340/DHD350/DHD360/DHD380

QL40/QL50/QL60/QL80

MISSION40/MISSION50/MISSION60/MISSION80

Send Inquiry

Product Description

QL60 Quarry Mining High Air Pressure DTH Hammer

⚙️

DHD/QL/MISSION Series: Valve-less type hammers designed for high performance even at low operating air pressures.

💎

Robust Design: Bits feature a strong design without foot valves to withstand heavy-duty applications.

⚡

Efficiency: Maximizes energy output while significantly reducing service and maintenance requirements.

🛡️

Longevity: Critical internal components are heat-treated under strict control for maximum tool life.

Primary Applications

Our DTH hammers are widely utilized in various industrial sectors including:

Mine and Quarry operations
Road construction (drilling and blasting)
Water well drilling
Slope protection and anchoring

Available DTH Series

High Pressure Medium Pressure Low Pressure High Efficiency Reverse Circulation

Technical Specifications

Type	Model	Length	Weight	External Dia. (mm)	Hole Range
Type	Model	(mm)	(kg)	External Dia. (mm)	(mm)
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	DHD340	1030	39	Φ99	Φ110-135
	SD4	1084	40.5	Φ99
	QL4	1097	41	Φ99
	Mission40	1005	40	Φ99
5 inch	DHD350	1214	76.5	Φ125	Φ135-155
	SD5	1175	72.5	Φ125
	QL5	1147	73	Φ125
	Mission50	1110	68.5	Φ125
6 inch	DHD360	1248	100	Φ142	Φ155-190
	SD6	1261	100	Φ142
	QL6	1212	95	Φ146
	Mission60	1161	90	Φ146
8 inch	D85	1492	188	Φ180	Φ195-254
	SD8	1463	192	Φ180
	QL8	1465	182	Φ180
	Mission80	1338	176	Φ180
10 inch	SD10	1502	290	Φ226	Φ254-311
10 inch	NUMA100	1510	288	Φ226	Φ254-311

QL60 DTH Hammer Details

Hammer Length (without bit)	1211 (mm)
Top Sub Thread	API 3 1/2" REG PIN
Outside Diameter	148 (mm)
Weight	105 (KG)
Bit Diameter	158-190 (mm)
Working Pressure	10-25 (Bar)
Air Consumption	20-28 (M3/min)
Bit Shank	QL60

Frequently Asked Questions

What are the main advantages of the QL60 DTH Hammer?

The QL60 is a valve-less hammer designed for high energy output and durability. It features a robust design that works efficiently even at low air pressures and includes heat-treated internal components for a longer lifespan.

Which industries typically use these drilling tools?

These hammers are widely used in open-pit mining, quarrying, water well drilling, foundation anchoring, and road construction for drilling and blasting.

Does the QL60 hammer require a foot valve?

No, the bits for the QL60 and the DHD/QL/MISSION series are designed without a foot valve, making them more robust for heavy-duty applications.

What is the recommended working pressure for the QL60?

The standard working pressure for the QL60 DTH hammer ranges between 10 to 25 Bar, depending on the specific drilling requirements.

What hole diameters can be achieved with the 6-inch series?

The 6-inch series, which includes the QL60, typically covers a hole range from Φ155mm to Φ190mm.

Are the internal components replaceable or reversible?

While components are built for longevity, please note that the wear sleeve for this specific series is not reversible. All critical internal parts undergo strict heat treatment to ensure reliability.
