📊 Basic Information
Model NO.
QL50A DTH Hammer
Certification
CE, ISO 9001:2000, ISO 9001:2008
Surface Treatment
Spray-Paint
Machine Type
Drilling Tools
Color
Red, Black, Yellow, White
Working Pressure
1.0-2.5MPa
Production Capacity
500000PCS/Month
🛠️ Product Description
High air pressure DTH hammer is a kind of down-the-hole hammer, mainly used for percussive drilling in rock formation. Characterized by high air pressure and high efficiency, it is ideal for areas with abundant air supply. Using compressed air to drive the piston, it generates high impact energy to drill efficiently into rock.
Because of economy and powerful drilling capacity, down the hole hammers are advanced drilling tools for mining industries. Designed to work in unison with drill bits, they provide high penetration rates, long service life, and low operational costs.
- Maximum energy delivery to the bit for fast drilling and low air consumption.
- High-quality alloy steel materials and advanced processing technology for long service life.
- Simple inner structure for low maintenance and easy assembly/disassembly.
- Multihead thread connecting chuck for easy departure of the bit from the hammer.
- Fully interchangeable with standard DTH bits and drill pipes.
🚀 Key Applications
Water well drilling
Mining & Mineral Exploration
Bench drilling
Civil Engineering Projects
Oil well drilling
Quarrying and Construction
📋 Technical Specification
| Type |
Model |
Length (mm) |
Weight (kg) |
External Dia. (mm) |
Hole Range (mm) |
| 3.5 inch | DHD3.5 | 930 | 25 | Φ82 | Φ90-110 |
| 4 inch | DHD340 | 1030 | 39 | Φ99 | Φ110-135 |
| 4 inch | QL4 | 1097 | 41 | Φ99 | Φ110-135 |
| 5 inch | QL5 | 1147 | 73 | Φ125 | Φ135-155 |
| 6 inch | DHD360 | 1248 | 100 | Φ142 | Φ155-190 |
| 8 inch | SD8 | 1463 | 192 | Φ180 | Φ195-254 |

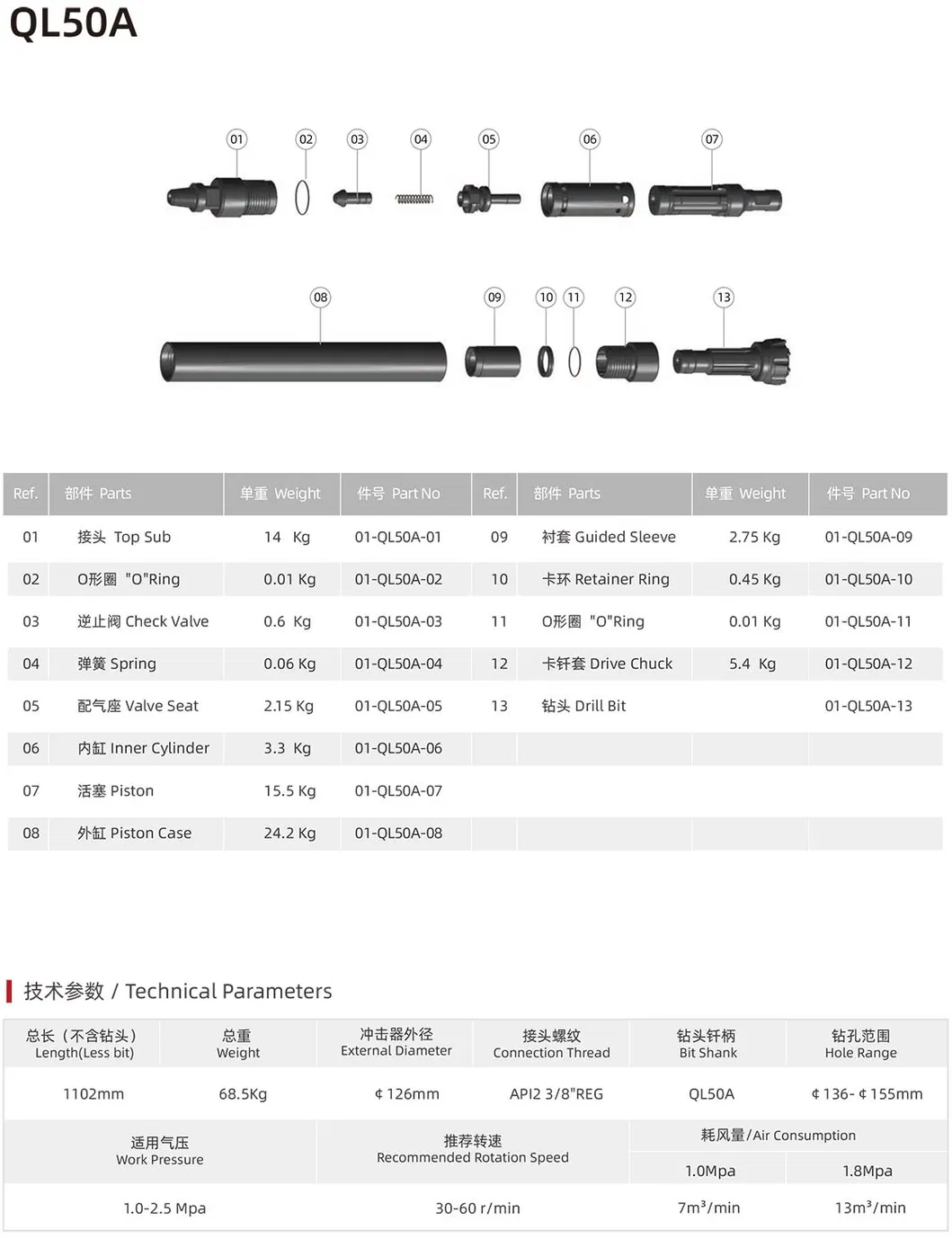

⚙️ QL50A Specific Details
| Hammer Length (without bit) |
1102 mm |
| Top Sub Thread |
API 2 3/8" REG PIN |
| Outside Diameter |
126 mm |
| Weight |
68.5 KG |
| Bit Diameter |
136-155 mm |
| Working Pressure |
10-25 Bar |
| Air Consumption |
7-13 M³/min |

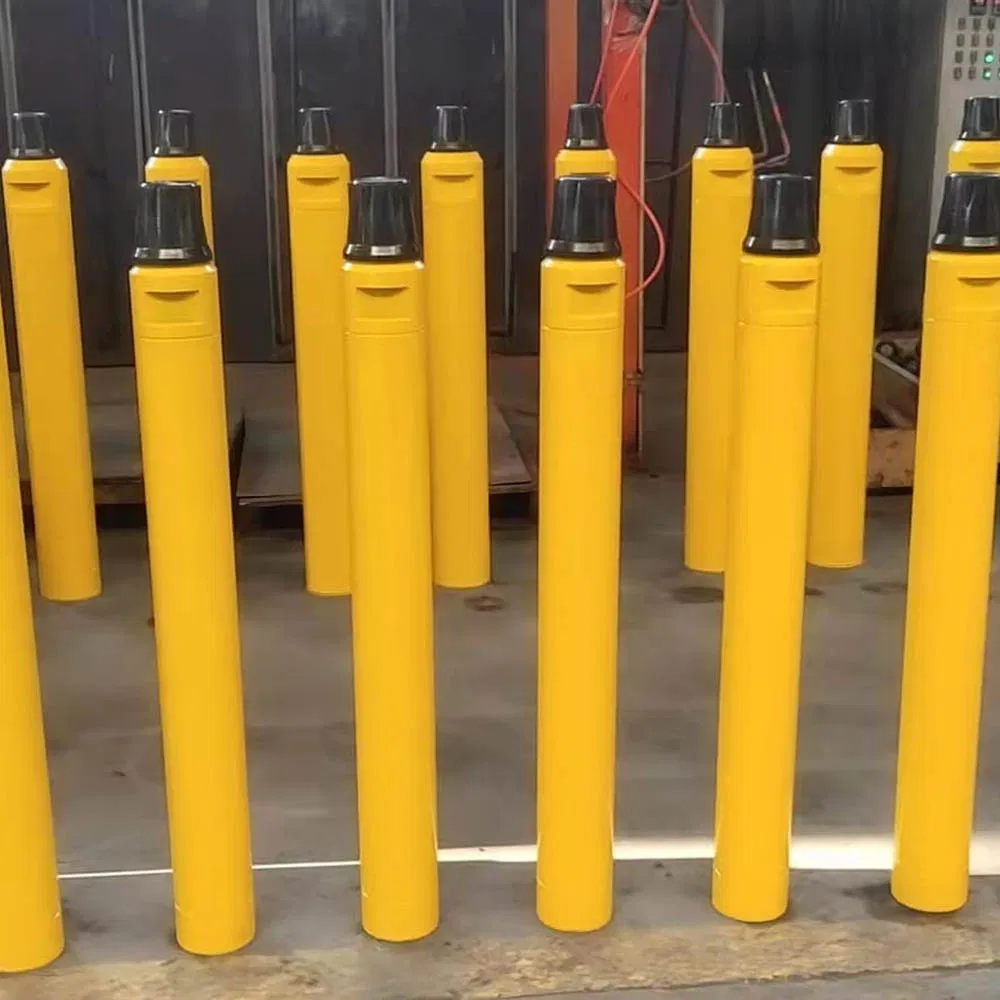

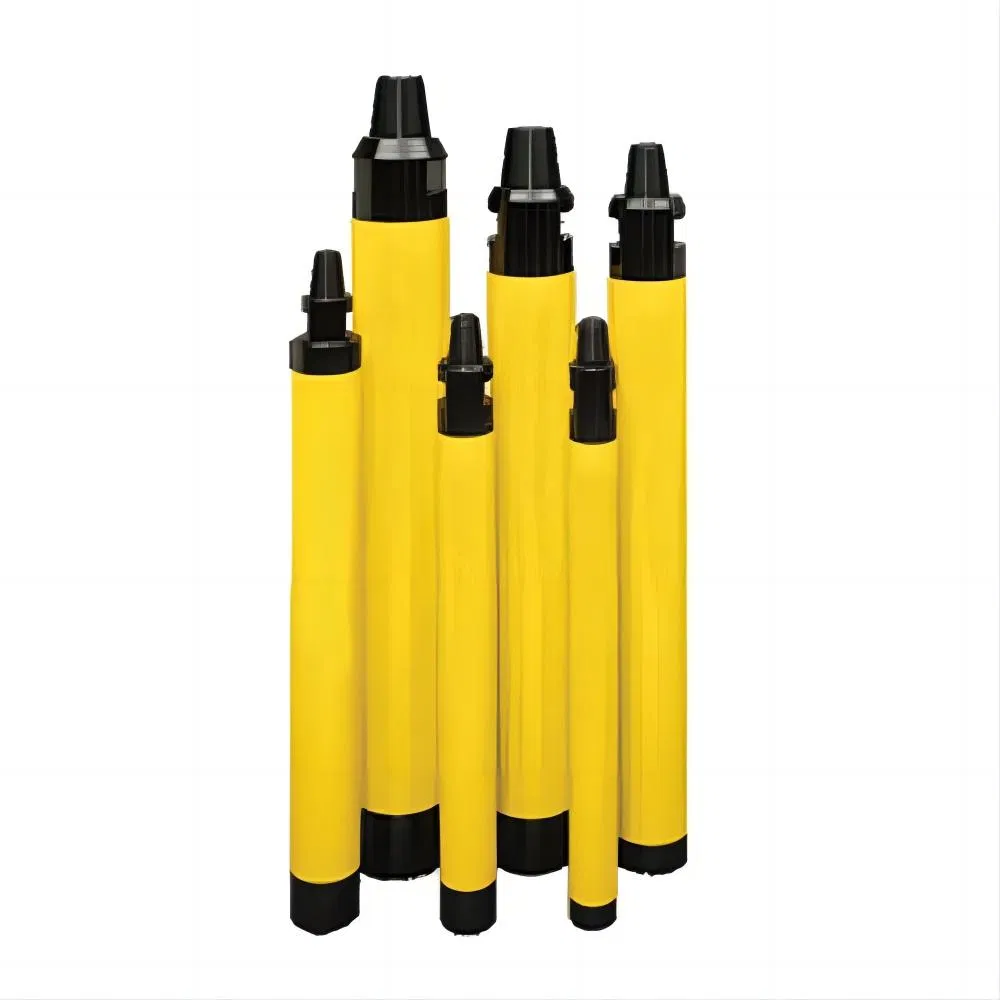

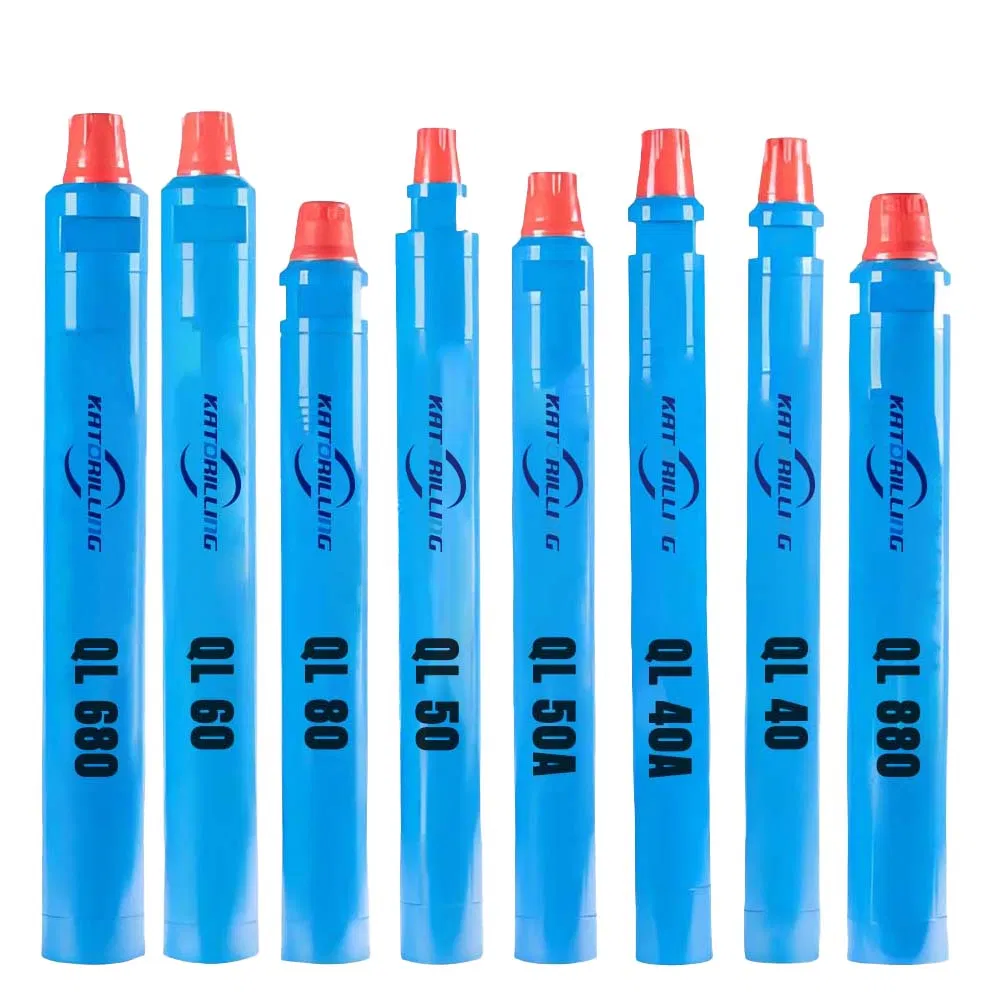

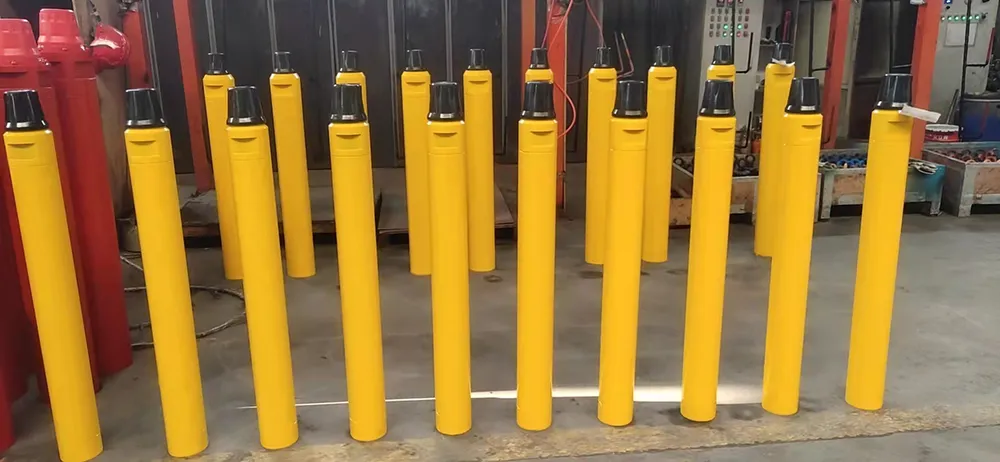

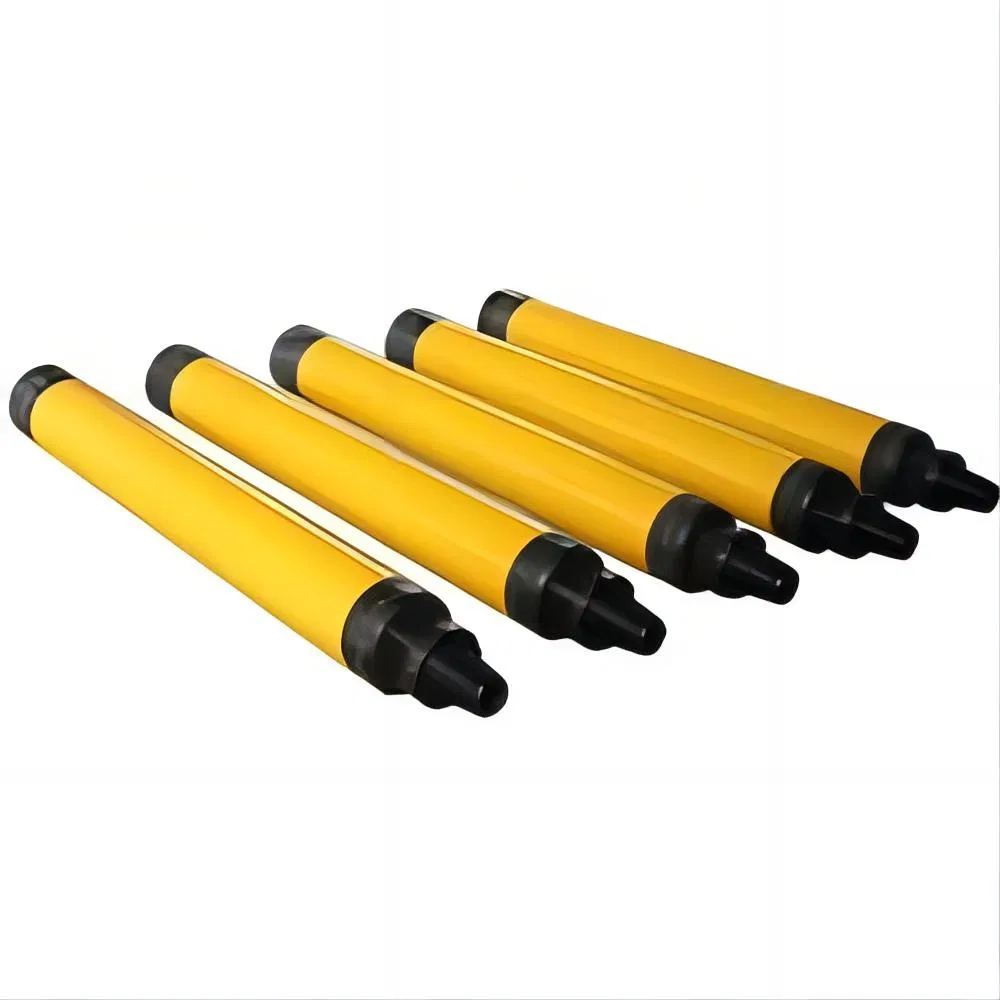

📷 Detailed Product Gallery
📦 Packaging & Shipping
❓ Frequently Asked Questions
What are the accepted payment methods?
We accept T/T (Telegraphic Transfer), Western Union, and L/C at sight.
How long is the standard delivery time?
Production normally takes 25 days. If the requested size is in stock, delivery can be arranged within 2 to 3 days.
What shipping options are available?
For sample orders, we recommend express couriers like DHL/UPS/TNT/FEDEX or air freight. For bulk orders, air or sea transport is suggested.
How is product quality ensured?
Every order undergoes strict inspection and testing by our experienced QC team before shipping.
What kind of after-sales support do you provide?
Our team responds within 24 hours. We provide continuous technical support and offer free replacements for any confirmed quality failures.
Is the QL50A hammer compatible with other DTH bits?
Yes, the HD series DTH hammers are designed to be interchangeable with standard DTH bits and drill pipes.
