China Mission60 Button Bits Shank Series DTH Drill Bit for Mining and Water Well Drilling Factories, Quotes

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Basic Information

Model NO.

M60 DTH drill bit

Certification

CE, ISO 9001:2000, ISO 9001:2008

Standard

AISI, GB

Surface Treatment

Spray-Paint

Material

Carbon Steel

Machine Type

Drilling Tools

Bit Shank

M60

Diameter

154-203mm

Production Capacity

500,000 PCS/Month

HS Code

8207199000

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

5.000kg

Transport Package

Wooden Case

Product Description

Because of economy and powerful drilling capacity, down the hole hammer become an advanced drilling tool for drilling and mining industries. Down the hole hammers and drill bits are designed together to work in perfect unison, giving high penetration rates, long service life and low costs.

★

Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure.

★

Smooth performance and long service life due to high quality alloy steel materials and advanced processing technology.

★

Low problem rate and easy to maintenance due to simple, reliable inner structure.

★

Easy to depart bit from hammer due to multihead thread connecting chuck and cylinder.

✔ Suitable for high pressure drilling rigs
✔ Water well drilling & Bench drilling
✔ Record breaking penetration
✔ Mining / Mineral Exploration
✔ Simple & robust design
✔ Foot Valve not required in the bit
✔ Penetrate 15% to 30% faster
✔ Provides additional production

Technical Specifications - Mission60 Shank

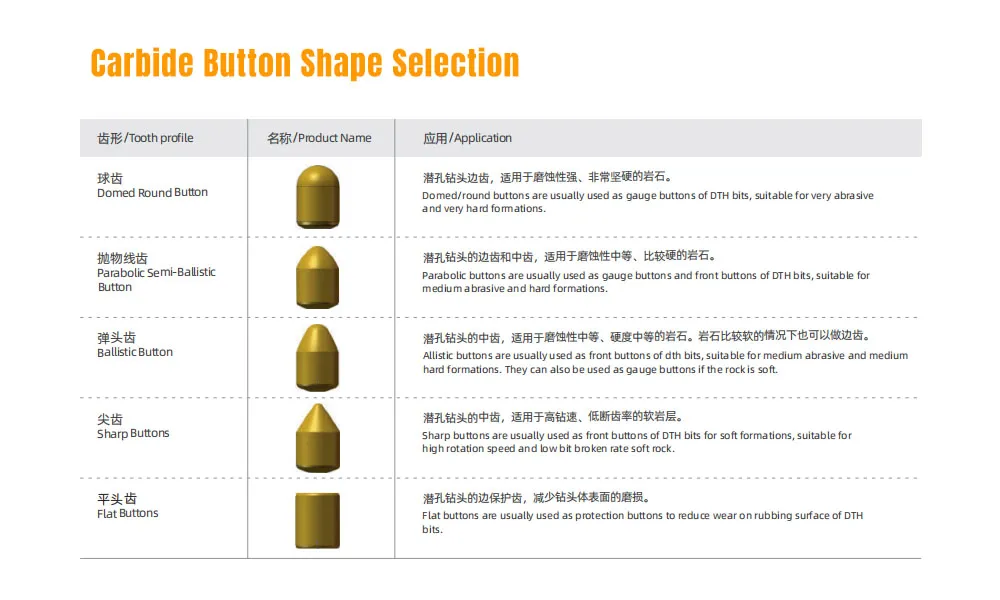

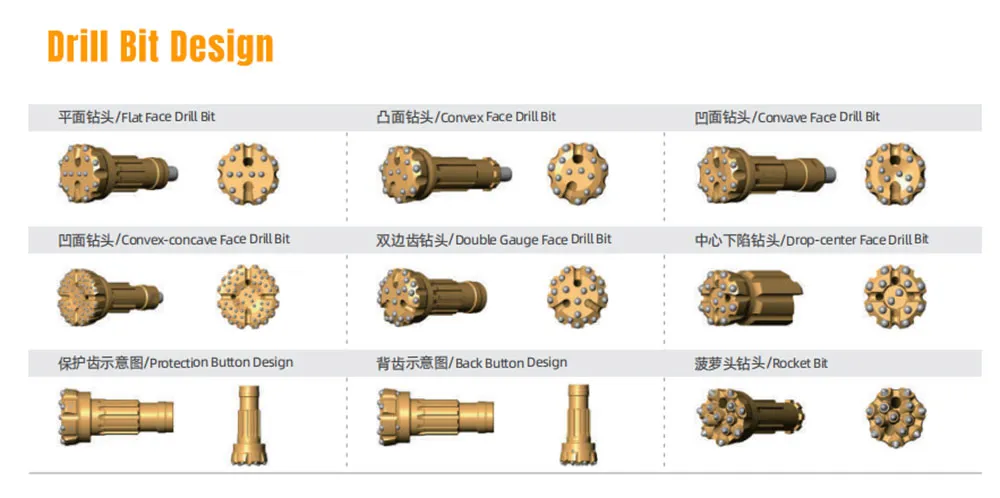

Head Shape	Head Diameter(mm)	Shank Length	Spline	Port Holes	Button Type	Gauge Buttons	Front Buttons	Weight(Kg)
Convex Face	154	231	12	2	Spherical	8XØ18	4XØ16+4XØ15	20.3
Flat Face	165	231	12	2	Spherical	8XØ18	8XØ16	20.5
Convex Face	171	231	12	2	Spherical	8XØ18	6XØ16+4XØ15	22
Convex Face	178	231	12	2	Spherical	8XØ18	6XØ16+5XØ15	23
Convex Face	190	231	12	3	Spherical	9XØ18	6XØ16+5XØ15	24
Convex Face	203	231	12	2	Spherical	10XØ18	8XØ16+6XØ15	27.3

Available DTH Bit Shanks

1) Dia. 64mm-70mm: Bulroc BR1
2) Dia. 70mm-95mm: Halco MACH20, Bulroc BR2
3) Dia. 90mm-102mm: COP32, COP34, Halco MACH303, M30, DHD3.5, Bulroc BR3
4) Dia. 105mm-152mm: COP44, DHD340, Halco MACH44, SD4, M40, QL40, Bulroc BR4
5) Dia. 135mm-165mm: COP54, DHD350R, COP54, Halco MACH50, SD5, M50, QL50, Bulroc BR5
6) Dia. 152mm-254mm: COP64, DHD360, SD6, M60, QL60, Bulroc BR6
7) Dia. 203mm-330mm: COP84, DHD380, SD8, QL80
8) Dia. 254mm-380mm: SD10, Numa100
9) Dia. 305mm-508mm: DHD1120, SD12, N120, N125
10) Dia. 405mm-864mm: SD15, SD18
11) VKP80, VKP95, CIR90, CIR100, CIR110, CIR150, CIR200...

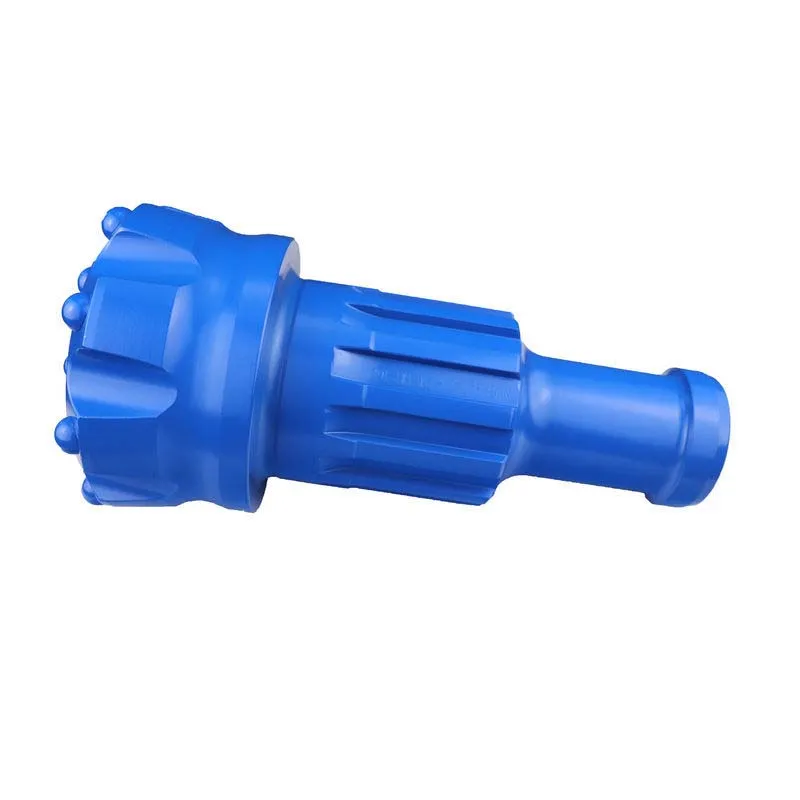

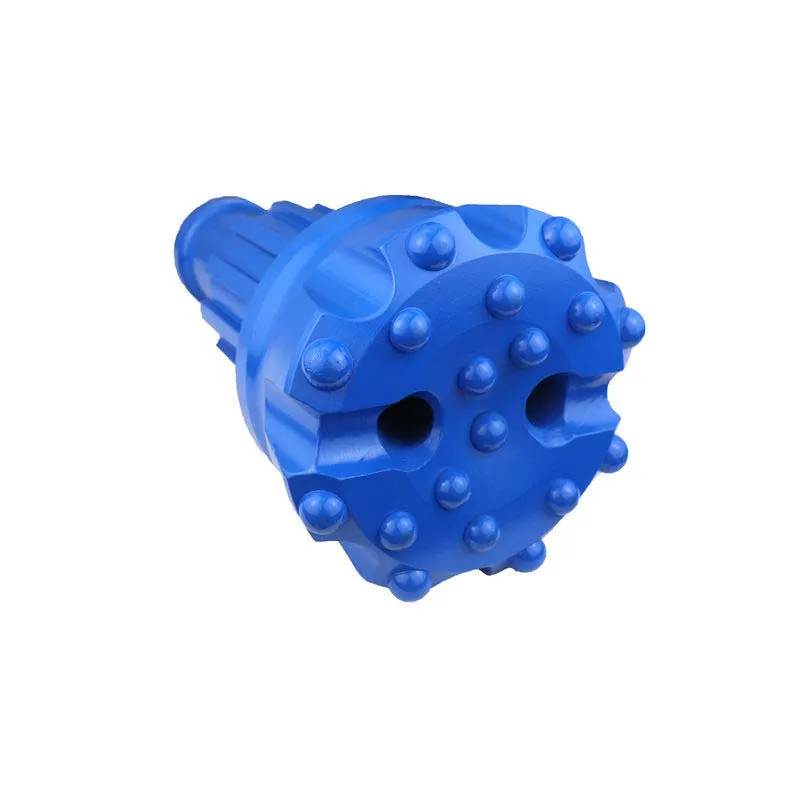

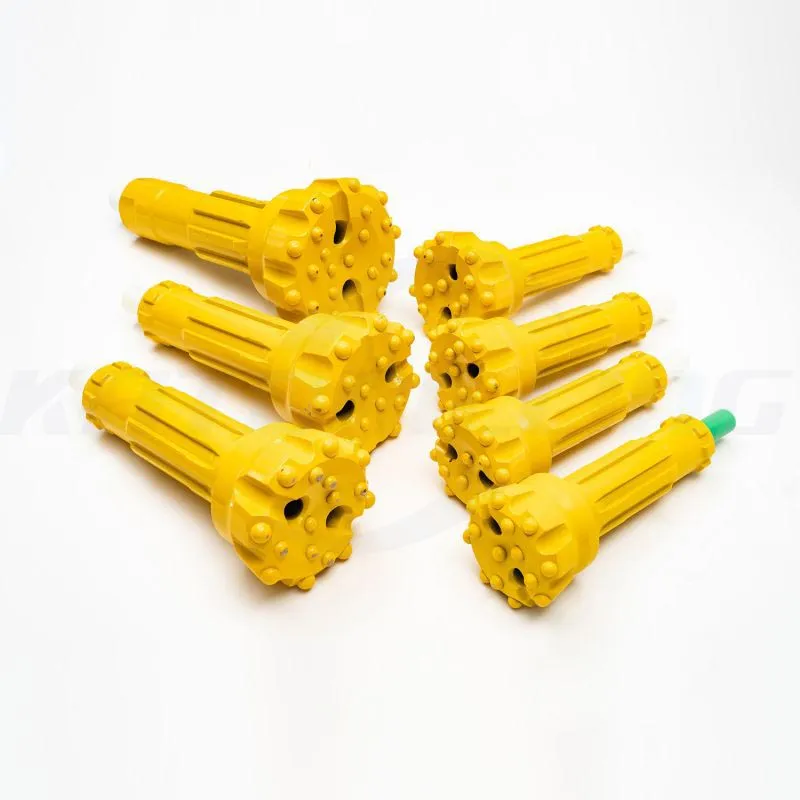

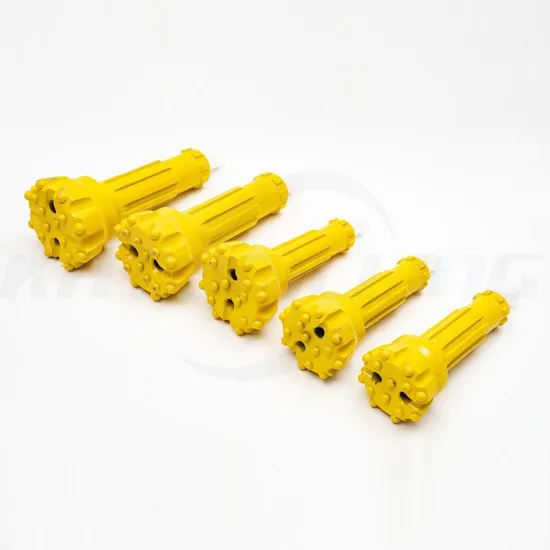

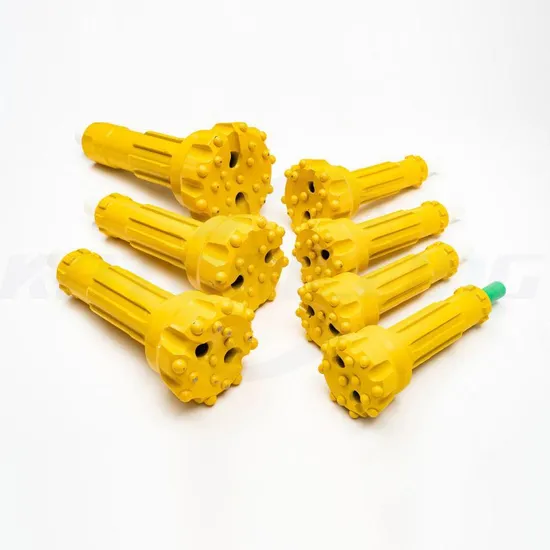

Detailed Photos

Frequently Asked Questions

What are the accepted methods of payment?

We accept T/T (Telegraphic Transfer), Western Union, or L/C at sight.

How long is the handling time for an order?

Handling time depends on the order quantity; normally, production takes about 25 days. If the requested size is in stock, it only takes 2 to 3 days.

What shipping ways are available?

For sample orders, we recommend courier express services like DHL, UPS, TNT, or FEDEX, or by air. For bulk orders, we suggest shipping by air or by sea.

How is quality control managed?

We have our own experienced QC team. Every order undergoes strict inspection and testing before being shipped out.

What kind of after-sales service do you provide?

Our sales team responds to questions within 24 hours (excluding holidays). Technical support is available at any time, and free replacements are provided for confirmed quality failures.

Can I get a bit for a specific rig type?

Yes, our HD series DTH hammers and bits are compatible with various high-pressure drilling rigs and are interchangeable with standard DTH bits and drill pipes.
