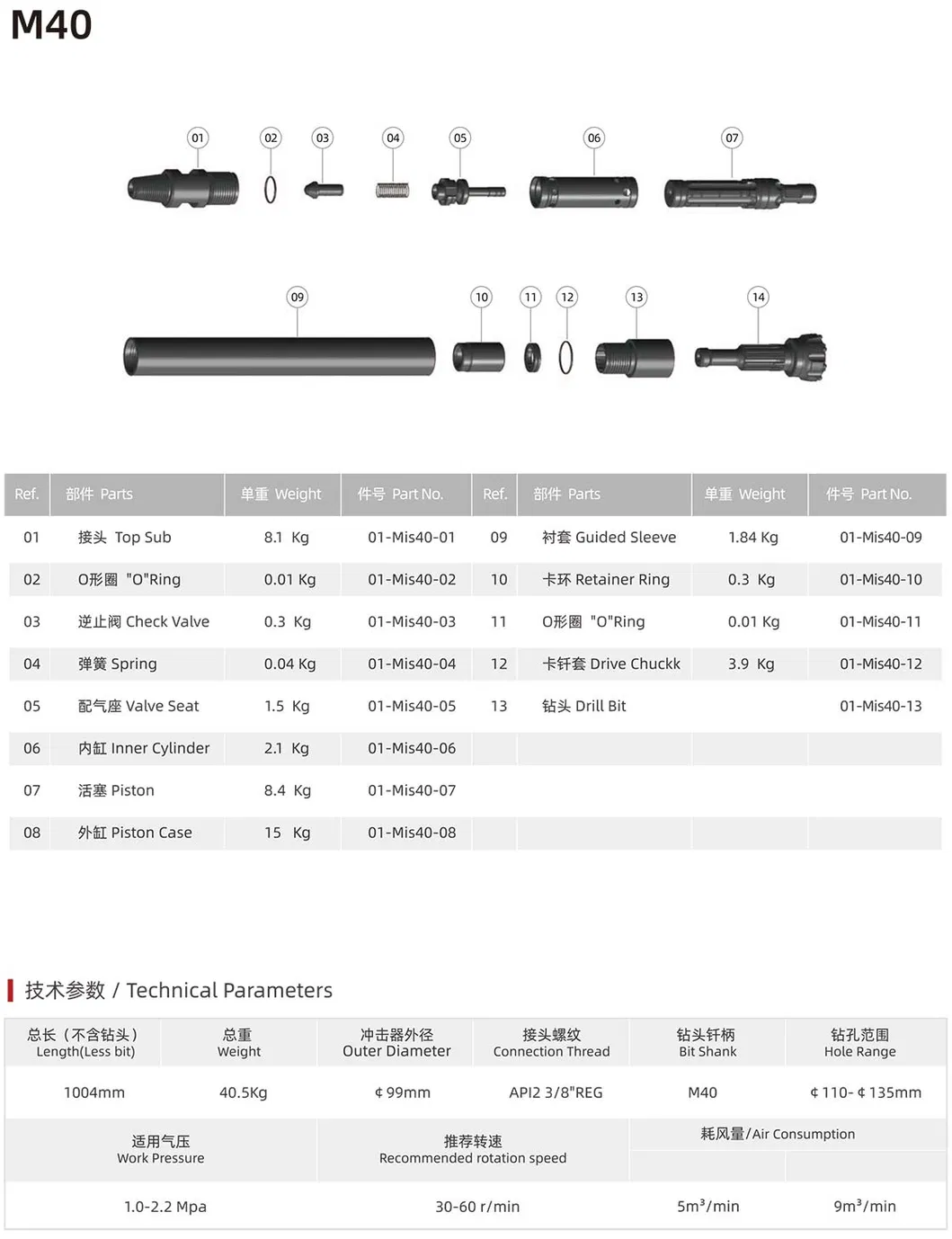

China Mission40 High Wind Pressure Down The Hole Impactor DTH Hammer Factories, Quotes

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Basic Product Specifications

Model NO.

Mission40

Certification

CE, ISO 9001:2000, ISO 9001:2008

Material

Carbon Steel

Manufacturing Process

Stamping

Outside Diameter

99mm

Length

1004mm

Weight

40.5kg

Working Pressure

1.0-2.2MPa

Product Description

High air pressure DTH hammer is a kind of down-the-hole hammer. It is mainly used for percussive drilling in rock formation. It is characterized by high air pressure and high efficiency, suitable for use in areas with abundant air supply. The working principle involves using compressed air to drive the piston to reciprocate in the cylinder, generating impact energy to impact the drill bit into the rock formation.

Core Advantages:

Maximum energy delivery to drilling bit for fast penetration.
High quality alloy steel materials and advanced processing technology.
Simple and reliable inner structure for easy maintenance.
Multihead thread connecting for easy bit departure.
Fully interchangeable with DTH bit and drill pipe.

Applications: Bench drilling, Water well drilling, Mining/Mineral Exploration, Civil Engineering, and Oil well drilling.

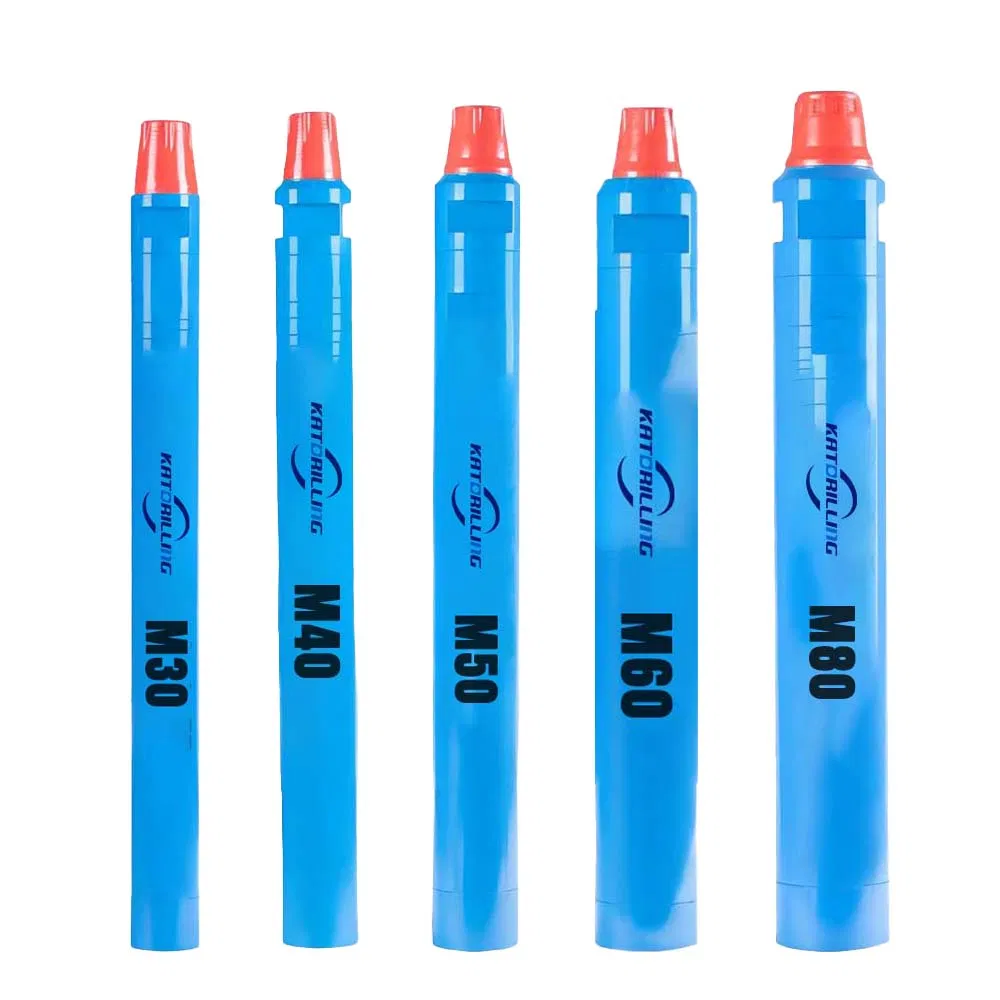

Technical Parameters

Type	Model	Length (mm)	Weight (kg)	External Dia (mm)	Hole Range (mm)
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	Mission40	1005	40	Φ99	Φ110-135
5 inch	Mission50	1110	68.5	Φ125	Φ135-155
6 inch	Mission60	1161	90	Φ146	Φ155-190
8 inch	Mission80	1338	176	Φ180	Φ195-254
