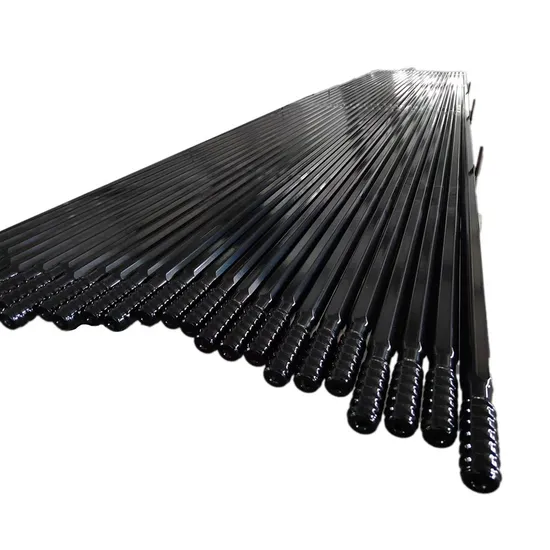

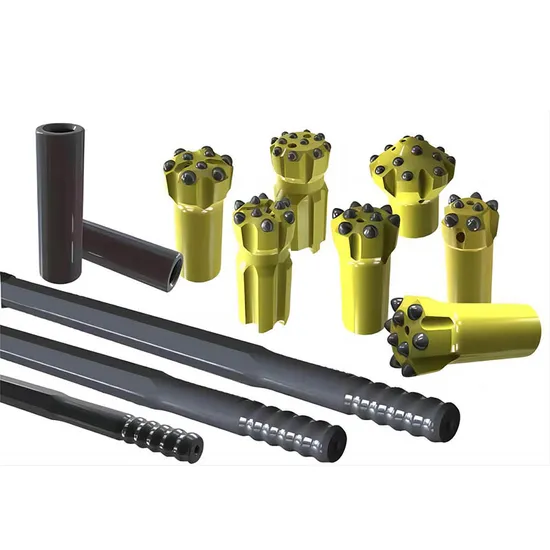

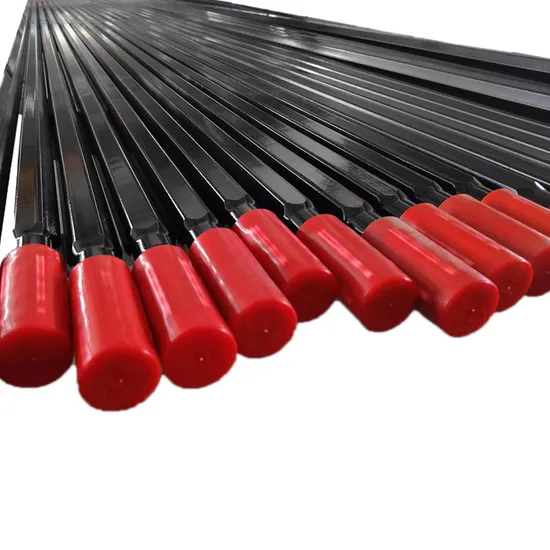

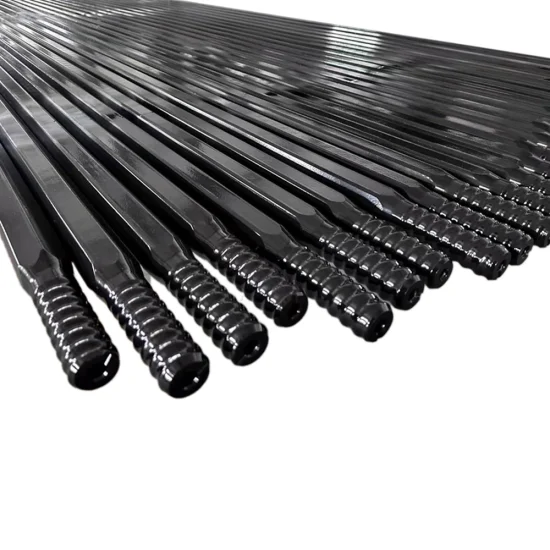

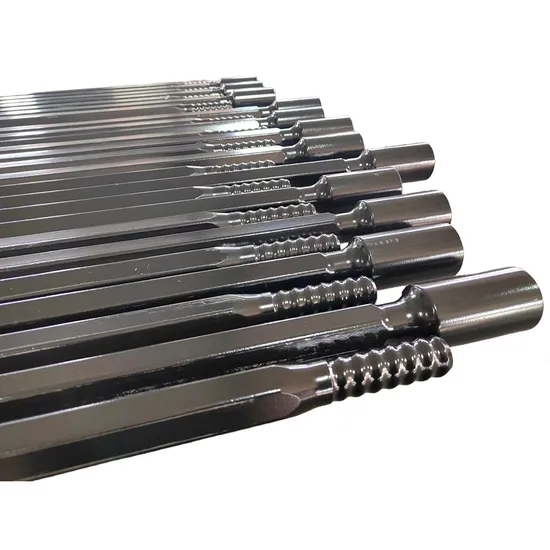

Extension rods are manufactured from high-quality hollow drill steels. They are available in two primary shapes: round and hexagonal. The central hollow hole, known as the flushing hole, is essential for transmitting water or air during the drilling process. The integrated threads allow for secure connection to couplings, shanks, or drill bits.
- Thread Types: R22, R25, R28, R32, R38, T38, T45, T51, ST58, T60
- Rod Sizes: Hex 22mm, Hex 25mm, Hex 28mm, Hex 32mm, Hex 35mm, Dia 39mm, Dia 46mm, Dia 52mm
- Available Lengths: 0.4m to 6.4m (600mm to 6400mm)
- Steel Grade: Male-Male Rod, MF Rod
- Productivity: 20,000 MT per month
HEX EXTENSION ROD SPECIFICATIONS
| R22 - R22 - HEX 22 (7/8" Rope Thread) |
| Rod Cross Section |
Length (mm) |
Length (ft) |
Thread Left |
Thread Right |
| HEX 22 | 610 | 2' | R22 | R22 |
| HEX 22 | 915 | 3' | R22 | R22 |
| HEX 22 | 1220 | 4' | R22 | R22 |
| HEX 22 | 1525 | 5' | R22 | R22 |
| HEX 22 | 1830 | 6' | R22 | R22 |
| R25 - R25 - HEX 25 (1" Rope Thread) |
| Rod Cross Section |
Length (mm) |
Length (ft) |
Thread Left |
Thread Right |
| HEX 25 | 610 | 2' | R25 | R25 |
| HEX 25 | 1000 | 3' 3" | R25 | R25 |
| HEX 25 | 1500 | 4' 11" | R25 | R25 |
| HEX 25 | 1830 | 6' | R25 | R25 |
| HEX 25 | 3050 | 10' | R25 | R25 |
| HEX 25 | 4305 | 14' 1-1/2" | R25 | R25 |
| R28 - R28 - HEX 28 (1-1/8" Rope Thread) |
| Rod Cross Section |
Length (mm) |
Length (ft) |
Thread Left |
Thread Right |
| HEX 28 | 610 | 2' | R28 | R28 |
| HEX 28 | 1220 | 4' | R28 | R28 |
| HEX 28 | 1830 | 6' | R28 | R28 |
| HEX 28 | 2435 | 8' | R28 | R28 |
| HEX 28 | 3660 | 12' | R28 | R28 |
