Comprehensive range of bench and production rock drilling tools includes everything from 1" rope thread equipment all the way up to T60 thread equipment. These tools are designed to improve productivity considerably and are widely recognized as top-tier solutions in the market today.
The professional toolset includes rods, shank adapters, couplings, and bits. We support 10 main thread types: R3212, R32, HL38, T38, T45, T51, T60, ST58, GT60, and ST68. These are fully compatible with button bits, cross bits, and reaming products.

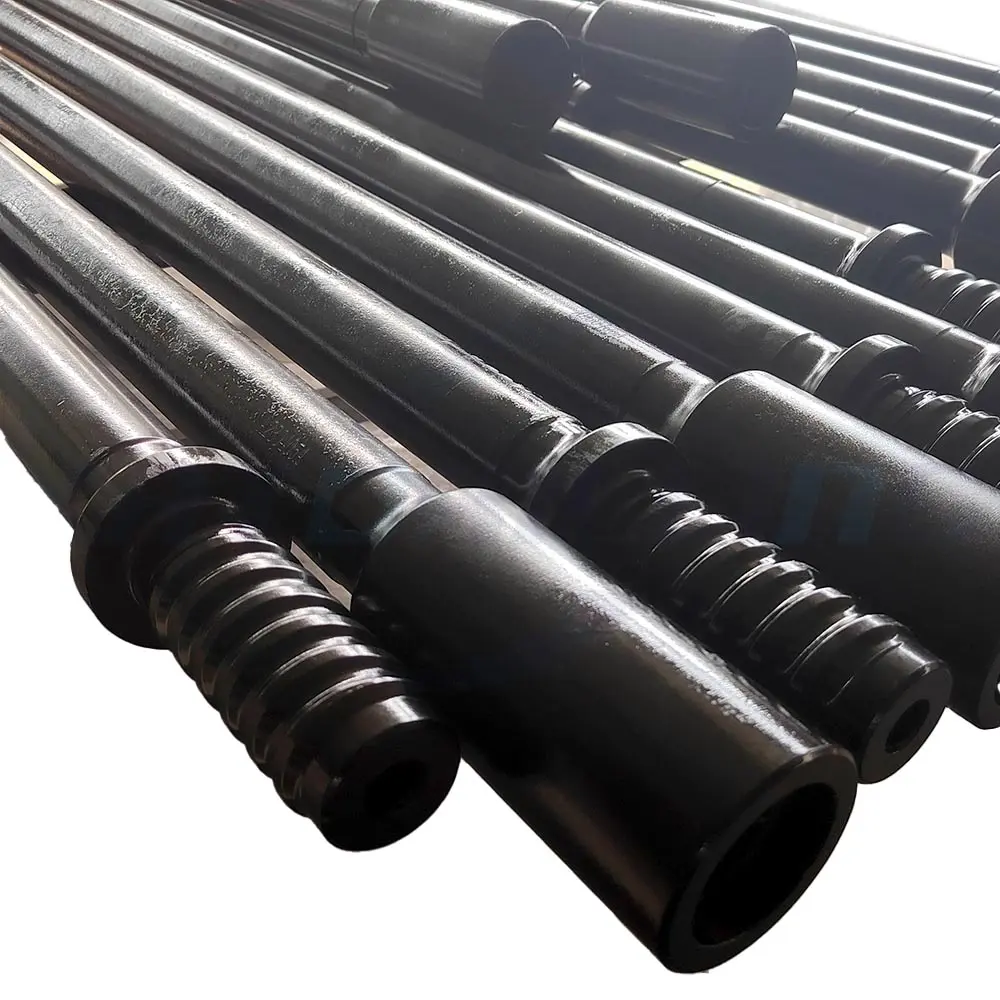

The M/F drill steel (Speed Rod) is a superior alternative to coupling sleeves. By integrating the female part of the threaded connection directly into the drill steel, it provides a stronger connection that is easier to remove. This integral design typically results in a longer service life compared to separate couplings.
Extension rods, also known as extension drill steel or extension rods, are essential for deep-hole drilling applications.
| MF-Rod GT60 – Rd 64 (2-1/4" Trapezoidal Thread) | ||||
|---|---|---|---|---|
| Diameter (mm) | Length (mm) | Length (ft) | Thread (Left) | Thread (Right) |
| 85 | 3660 | 12' | GT60F | GT60 |
| 85 | 4270 | 14' | GT60F | GT60 |
| 85 | 6100 | 20' | GT60F | GT60 |
| MF-Tube GT60 – Rd 76 (3" Round) | ||||
|---|---|---|---|---|
| Diameter (mm) | Length (mm) | Length (ft) | Thread (Left) | Thread (Right) |
| 76 | 1220 | 4' | GT60F | GT60 |
| 76 | 1525 | 5' | GT60F | GT60 |
| 76 | 1830 | 6' | GT60F | GT60 |
| 76 | 3050 | 10' | GT60F | GT60 |
| 76 | 3660 | 12' | GT60F | GT60 |
| 76 | 4270 | 14' | GT60F | GT60 |
| 76 | 5200 | 17' 3/4" | GT60F | GT60 |
