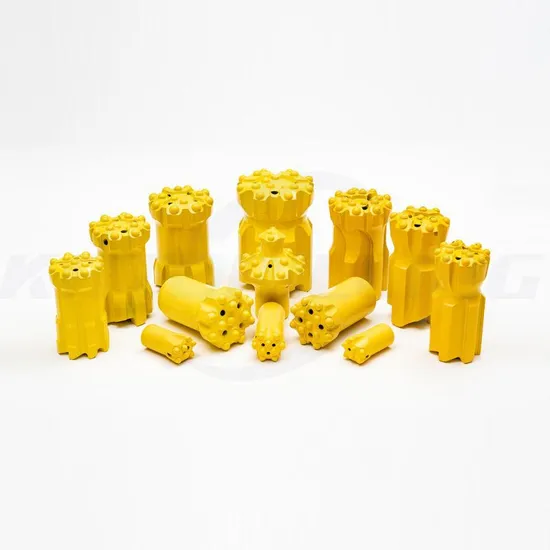

Drifting and tunnelling tools include rods, shank adapters, couplings and bits. We have mainly 7 threads: R25, R28, SR28, R32, SR35, and R35. Diameter: 38-127mm. They can be used with button bits, cross bits and reaming products.
| Button bit R22/SR22 | Carbide dimension | Dimensions D | Flushing hole | |||||
|---|---|---|---|---|---|---|---|---|
| Gauge | Front | |||||||
| No. | mm | No. | mm | mm | in | Front | Side | |
| - | 5 | 7 | 2 | 7 | 32 | 1 1/4" | 1 | 1 |
| - | 5 | 8 | 2 | 7 | 34 | 1 11/32" | 1 | 1 |
| - | 5 | 9 | 2 | 7 | 38 | 1 1/2" | 1 | 1 |
| - | 5 | 10 | 2 | 9 | 45 | 1 3/4" | 1 | 1 |
| Button bit R25/SR25 | Carbide dimension | Dimensions D | Flushing hole | |||||
|---|---|---|---|---|---|---|---|---|
| Gauge | Front | |||||||
| No. | mm | No. | mm | mm | in | Front | Side | |
| - | 5 | 7 | 2 | 7 | 32 | 1 1/4" | 1 | 1 |
| - | 5 | 9 | 2 | 7 | 38 | 1 1/2" | 1 | 1 |
| - | 5 | 11 | 2 | 10 | 51 | 2" | 1 | 1 |
| - | 6 | 10 | 3 | 10 | 60 | 2 3/8" | 3 | 1 |
