Due to its economy and powerful drilling capacity, the down the hole (DTH) hammer has become an advanced drilling tool for the drilling and mining industries. DTH hammers and drill bits are designed to work in perfect unison, delivering high penetration rates, long service life, and low operational costs.
Delivers maximum energy to the drilling bit, ensuring fast drilling speeds and low air consumption due to the specialized inner structure.
Smooth performance and long service life thanks to high-quality alloy steel materials and advanced processing technologies.
Low problem rates and simple assembly/disassembly, making maintenance straightforward and reliable.
Key Applications:
| Type | Model | Length (mm) | Weight (kg) | External Dia. (mm) | Hole Range (mm) |
|---|---|---|---|---|---|
| 3.5 inch | DHD3.5 | 930 | 25 | Φ82 | Φ90-110 |
| 4 inch | DHD340 | 1030 | 39 | Φ99 | Φ110-135 |
| SD4 | 1084 | 40.5 | Φ99 | ||
| QL4 | 1097 | 41 | Φ99 | ||
| Mission40 | 1005 | 40 | Φ99 | ||
| 5 inch | DHD350 | 1214 | 76.5 | Φ125 | Φ135-155 |
| SD5 | 1175 | 72.5 | Φ125 | ||
| QL5 | 1147 | 73 | Φ125 | ||
| Mission50 | 1110 | 68.5 | Φ125 | ||
| 6 inch | DHD360 | 1248 | 100 | Φ142 | Φ155-190 |
| SD6 | 1261 | 100 | Φ142 | ||
| QL6 | 1212 | 95 | Φ146 | ||
| Mission60 | 1161 | 90 | Φ146 |

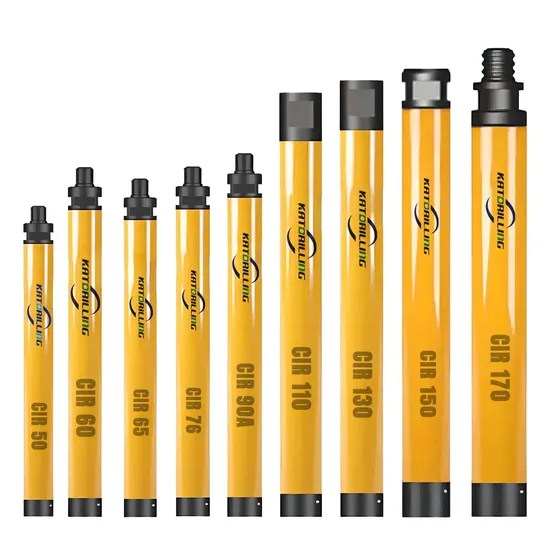

| Item | Length (mm) | Thread | Outside Dia. (mm) | Weight (kg) | Bit Dia. (mm) | Pressure (Bar) | Air Consumption |
|---|---|---|---|---|---|---|---|
| CIR-50 | 628 | F32*8PIN | 44 | 5 | 50 | 4-10 | 3-5 m³/min |
| CIR-60 | 777 | F42*8PIN | 53 | 7.5 | 60 | 4-10 | 3-7 m³/min |
