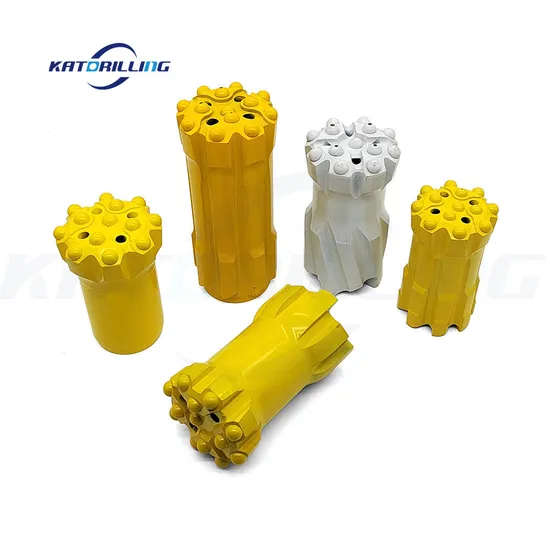

Bench and production drilling tools include rods, shank adapters, couplings and bits. We offer 9 main threads: R3212, R32, HL38, T38, T45, T51, T60, ST58 and ST68. These tools are perfectly compatible with button bits, cross bits and reaming products.
Our comprehensive range of bench and production rock drilling tools includes equipment from 1" rope thread all the way up to T60 thread. These high-performance drill rods, tubes, and button bits are engineered to improve productivity considerably in demanding environments.
| Type | Carbide Dimension | Dimensions D | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|---|
| Gauge | Front | [mm] | [in] | Front | Side | |||
| [No.] | [mm] | [No.] | [mm] | |||||

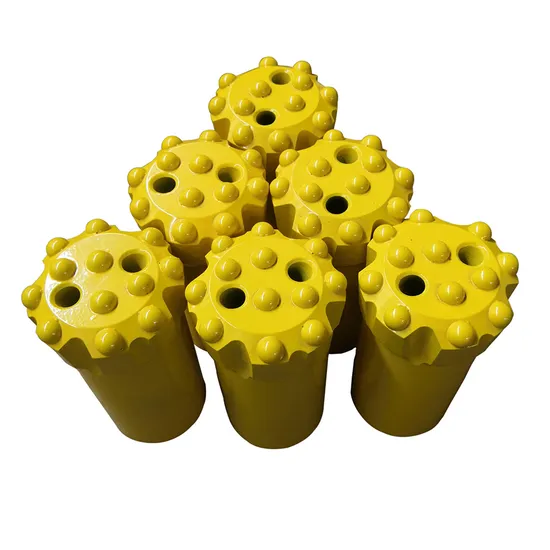

| Button bit-T38 | 6 | 10 | 3 | 10 | 57 | 2 1/4" | 3 | 1 |
| Button bit-T38 | 6 | 11 | 3 | 11 | 64 | 2 1/2" | 3 | 1 |
| Button bit-T38 | 6 | 12.7 | 3 | 12.7 | 76 | 3" | 3 | 1 |
| Drop Center | 6 | 11 | 3/1 | 11/9.5 | 70 | 2 3/4" | 3 | 0 |
| Drop Center | 8 | 14 | 4/3 | 12.7/11 | 102 | 4" | 4 | 0 |
