34mm Tapered Drill Bits for Hard Rock Drilling

6 Buttons,Epiroc style

Inner hole Zinc Coated Or Copper Sleeve

Product Description

Tapered button bit as small hole bit is different with thread button bit as long hole bit to use taper match with bit with rod to be used for air leg or hand held jack hammer driller in quarrying, and mining.

The wear resistance of the tapered bit is increased by 30%, the service life is longer, and it is suitable for different rocks.

Technical Specifications
Shank & Diameter Connect shank Size: Φ22
Bit Diameter: 34mm
Connection & Taper Standard Tapered connection: 7 degree, 11 degree, 12 degree available.
Material Quality Alloy Steel Bar 45CrNiMoV, 50R61 with Tungsten Carbide Tips YK05 or T6.
Button Configuration Button Shape: Ballistic or Flat Face; Bit Body: Standard; Qty: 6, 7, 9 pcs.
Product Display

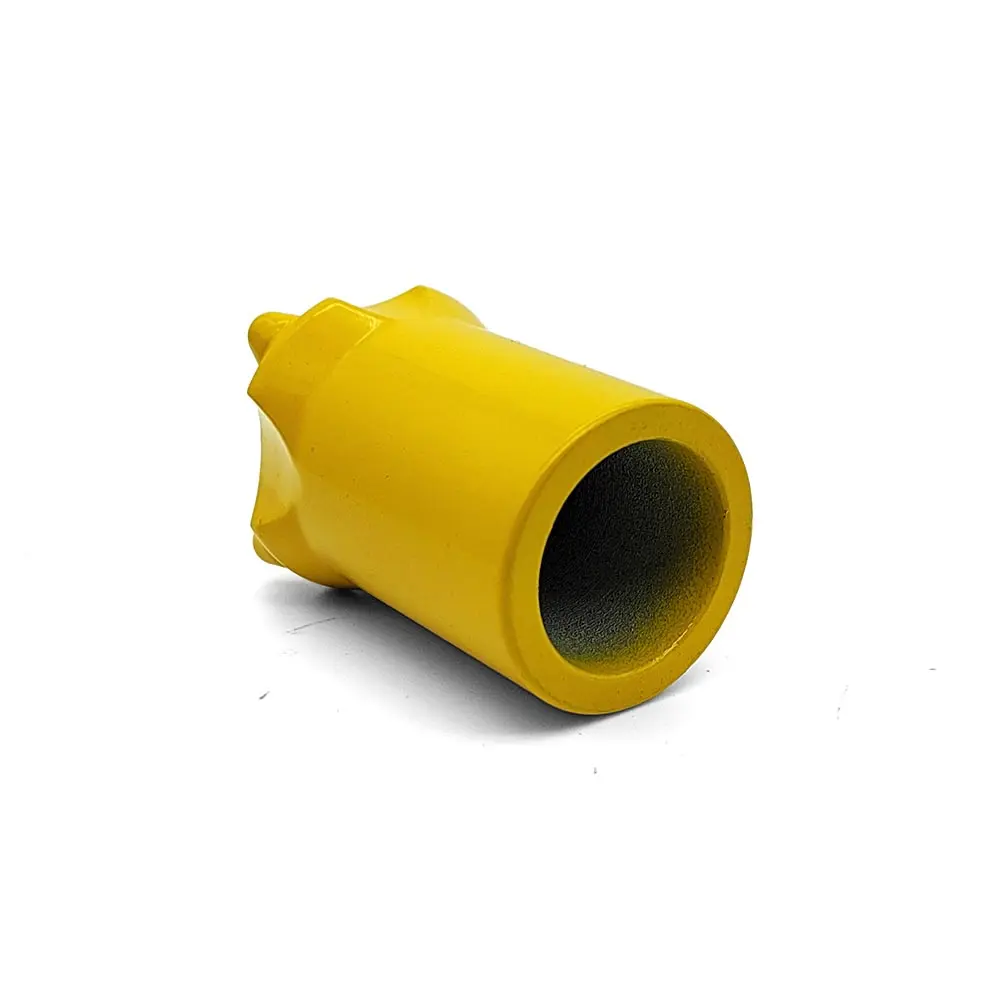

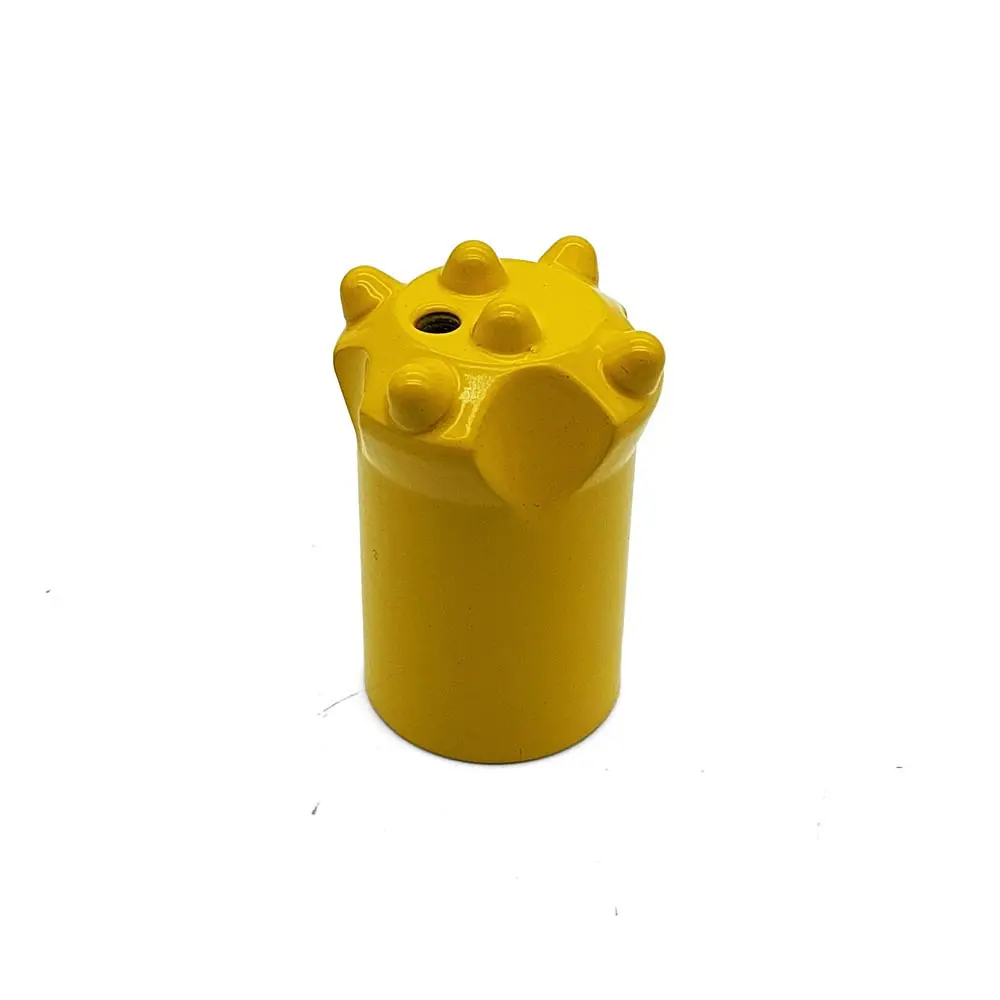

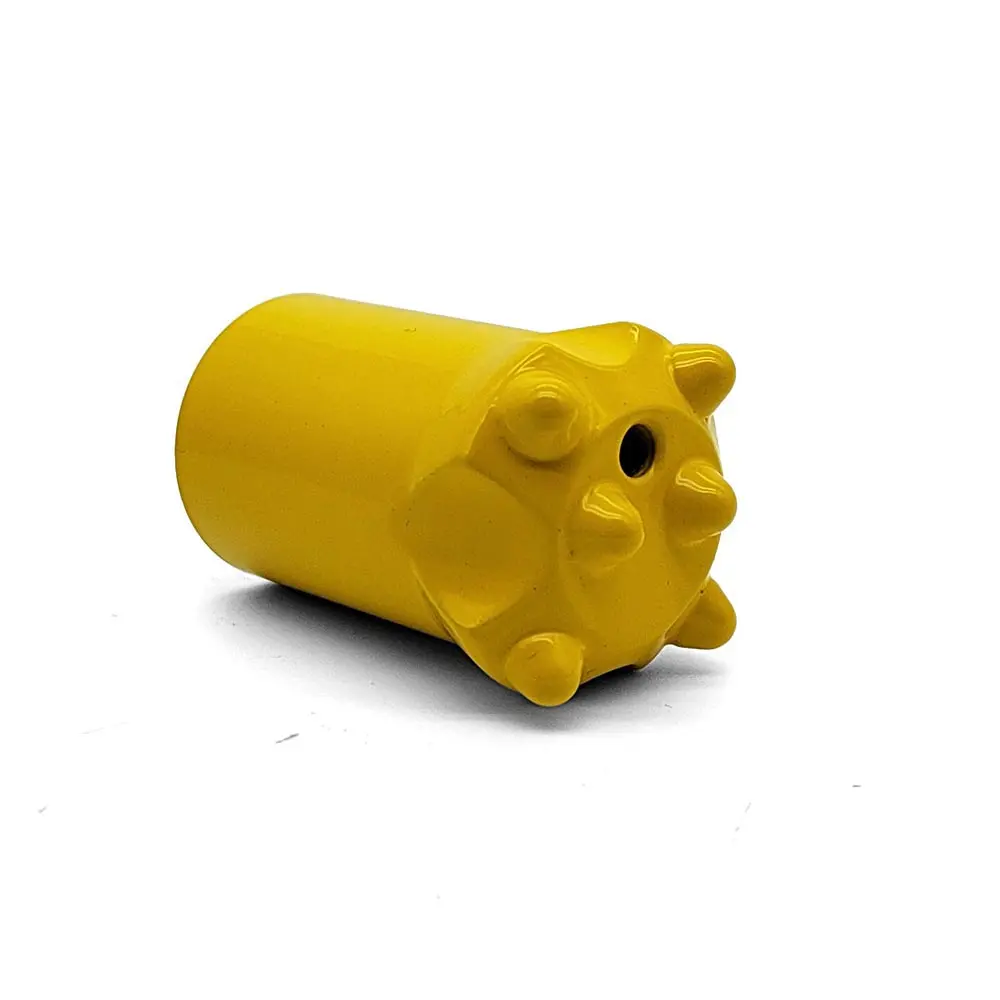

Epiroc style tapered button bits
Market Reach

These tapered button bits are widely consumed in high-demand stone countries and regions including India, Saudi Arabia, Chile, and South Africa.

Frequently Asked Questions
What is the main application of tapered button bits?
Tapered button bits are primarily used for small hole drilling in quarrying and mining, compatible with air leg or hand-held jack hammer drillers.
What taper angles are available for these bits?
The bits come in standard tapered connection angles of 7 degrees, 11 degrees, and 12 degrees to fit various drilling rod requirements.
What materials are used to ensure durability?
We use high-quality Alloy Steel Bars (45CrNiMoV or 50R61) combined with premium Tungsten Carbide Tips (YK05 or T6) for maximum wear resistance.
How does the wear resistance compare to standard bits?
The wear resistance of these tapered bits is increased by 30%, which significantly extends the service life and performance in different rock types.
What button configurations can I choose from?
Depending on the drilling conditions, you can choose between Ballistic or Flat Face shapes, with button quantities of 6, 7, or 9 pieces.
Are these bits compatible with Epiroc style equipment?
Yes, these bits are designed following industry standards, including styles compatible with Epiroc equipment for universal application.
