Anchoring is widely used in tunnel for pre-support, slope, coast, mine, water conservancy projects, Building foundation, roadbed reinforcement and geological faulty treatment such as landslip, crack, and sink age, it’s irreplaceable in narrow construction environment.

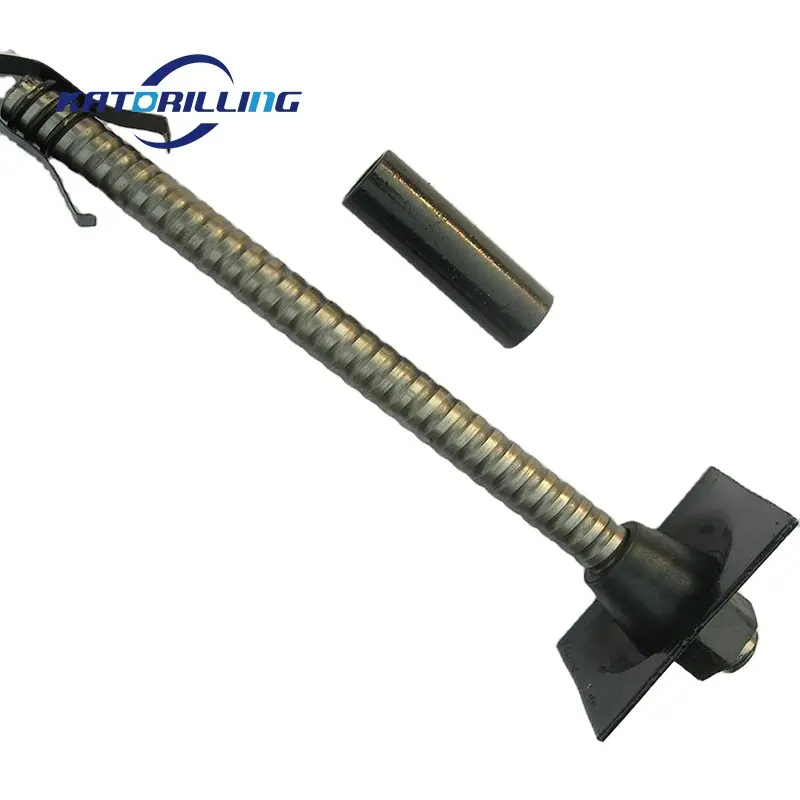

Comprised of a hollow threaded bar attached with a drill bit that performs drilling. The hollow bar allows air and water to freely pass through the bar during drilling to remove debris, after drilling at the required depth is completed, grout fills the hollow bar through the pressure and completely covers the entire bolt.
The coupler can be used to join hollow bars and extend the bolt length, it means the anchor can be elongated with the couplers.
The plate and nut are installed according to their design requirement to ensure structural stability.
The drill bit would be selected at the choice of ground condition to maximize drilling efficiency.
| Hollow Anchor Bar | |||||
|---|---|---|---|---|---|
| Size | Outer Dia. (mm) | Inner Dia. (mm) | Ultimate Load (kN) | Yield Load (kN) | Weight (Kg/m) |
| E-T76/51 | 76 | 51 | 1600 | 1200 | 16.5 |
| E-T76/45 | 76 | 45 | 1900 | 1500 | 19.7 |
| Coupler Specifications | ||||
|---|---|---|---|---|
| Size | Outer Dia. (mm) | Length (mm) | Weight (Kg/pc) | Note |
| S-T76 | 95 | 200 | 4.26 | With sealing structure |
| 95 | 220 | 4.8 | ||
| Hex Nut Specifications | ||||
|---|---|---|---|---|
| Size | Key Size (mm) | Length (mm) | Weight (Kg/pc) | Hardness (HRC) |
| S-T76 | 100 | 75 | 2.4 | 25-30 |
| 100 | 80 | 2.67 | ||
| Spherical Collar Nut | |||
|---|---|---|---|
| Size | Key Size (mm) | Length (mm) | Weight (Kg/pc) |
| E-T76 | 95 | 70 | 1.9 |
| Anchor Plate Specifications | ||||
|---|---|---|---|---|
| Size | Dimensions (mm) | Thickness (mm) | Hole Dia. (mm) | Weight (Kg/pc) |
| S-T76 | 250×250 | 60 | 80 | 27 |
| 250×250 | 40 | 80 | 18 | |
